Item # FA6260T-8MB
6" COAXIAL LOUDSPEAKER WITH 70.7V/100V-32W TRANSFORMER AND 8OHM BYPASS 60 DEGREE DISPERSION

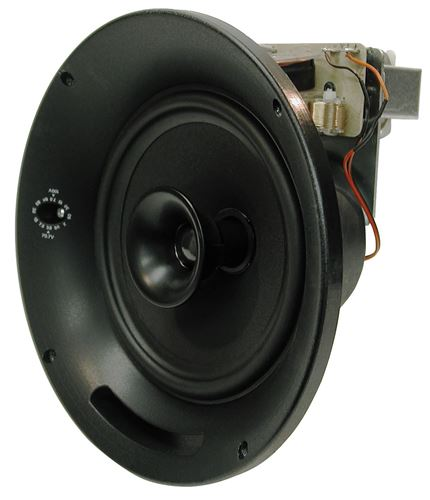

Click image to enlarge
Item # FA6260T-8MB
6" COAXIAL LOUDSPEAKER WITH 70.7V/100V-32W TRANSFORMER AND 8OHM BYPASS 60 DEGREE DISPERSION
- UM: EA
- Estimated Weight: 5.7
- Brand: ATLAS IED
Model FA6260T-8MB is the entire 6" speaker/ transformer/ selector switch/ front plate assembly found in the FAP6260T assembly. The footprint of the FA6260T-8MB is identical to a standard FA series 8" speaker component. This footprint allows the motor board to fit into all original Strategy Series 8" enclosure FA97-8 in the exact same manner as a regular 8" FA speaker (FA138Txx).
Features:
- 6" Speaker Installs into 8" Strategy Enclosure (FA97-8)
- Designed for Division of Labor Installations When Enclosures Need to be Installed Before Speakers
- Enhanced Quality 70.7V/100V Internal Transformers Minimize Insertion Loss and Maintain Low Frequency Response While Providing increased Output
- Front Mounted Tap Selector Switch for Easy System Tuning Adjustments Includes Transformer Bypass Setting for 8ohm Direct Coupled Operation
- Safety Listed to UL1480
| Speaker Type | Coaxial |
|---|---|
| Frequency Response | 63Hz - 20kHz |
| Power Taps | 1.9, 3.8, 7.5, 15, 30, & 60-Watts + 8 Ohm direct |
| Dispersion | 60° |
| Sensitivity | 92dB Average |
| Depth | 7.862" (19.97cm) |
| Diameter | 10.972" (279mm) |
| Safety Listed | 1480 |
| Warranty Period | 60 months from date of purchase |
