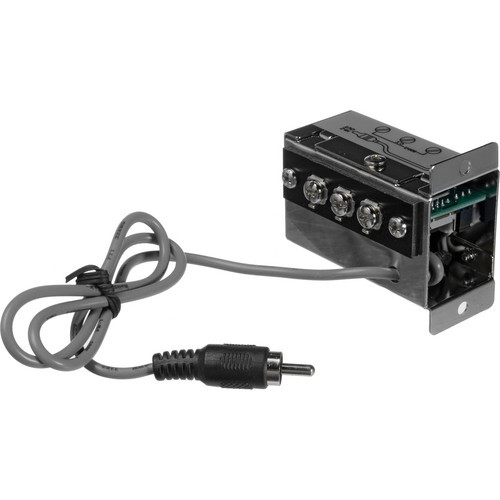

The WMT1AS is a balanced and isolated impedance matching transformer with additional features that allow adapting of signal levels between various audio source and input types. Typical uses are to provide a 600-ohm balanced input adapter for unbalanced AUX inputs. WMT1AS can also be used to drive long, balanced, twisted pair cable. This improves noise rejection and the maximum run length. The WMT1AS can adapt speaker level signals (25V/70V systems) to a level suitable for the AUX input of an amplifier, adapt line-level signals down to levels suitable for MIC inputs and can adapt speaker level signals to MIC level as well.

FEATURES

• - Hi-Z, 10k-ohm primary impedance

• - Lo-Z, 600-ohm secondary impedance, balanced with center tap

• - Matches high-to-low impedance or low-to-high impedance

• - Adapts line-level signals to microphone inputs

• - RCA connector for Hi-Z side

• - Screw terminals for Lo-Z side

• - Small steel enclosure w/ mounting ears allows easy mounting anyplace
