Item # WHI-NAC3FCB
CONNECTOR - POWERCON 20A - NEUTRIK, POWER OUT, INLINE, (GRAY)
- MAP: $0.00 / EA
- List Price: $0.00 / EA
- Log in to see if custom discounts apply
- Minimum Order Qty: 1
- Case Qty: 50
Item # WHI-NAC3FCB
CONNECTOR - POWERCON 20A - NEUTRIK, POWER OUT, INLINE, (GRAY)
- UM: EA
- Estimated Weight: 0.1
- Brand: WHIRLWIND

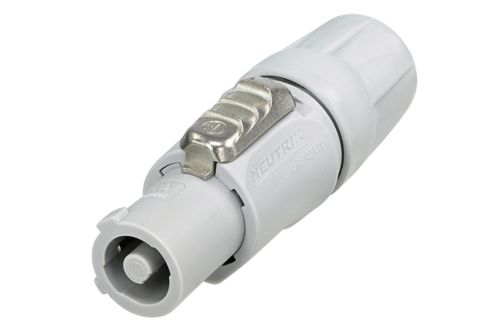

Lockable cable connector, power-out, screw terminals, grey
The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!
Features
Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
Fast and easy twist lock latching system
Extremely robust and reliable
Ergonomic design
Unique Neutrik chuck type strain relief
Improved kink protection by two-component bushing
UL, cUL recognized components, VDE certified, SEV approved
Branded with unique hologram - guarantees genuine and authentic Neutrik product
|
Product |
|
|
Title |
NAC3FCB |
|
Gender |
female |
|
Electrical |
|
|
Contact resistance |
= 3 mO |
|
Dielectric strength |
4 kVdc / 2.8 kVac |
|
Insulation resistance |
> 0.1 GO (after damp heat test IEC 68-2-30) |
|
Number of electrical contacts |
2 + PE |
|
Rating Europe |
EN 61984:20 A 250 V AC |
|
Rating USA |
UL 1977:20 A 250 V AC |
|
Mechanical |
|
|
Cable O.D. |
6 - 15 mm (1) |
|
Lifetime |
> 1000 mating cycles |
|
Wiresize |
2,5 mm² |
|
Wiresize |
12 AWG |
|
Locking device |
Quick Lock |
|
(1) |
Cable O.D. range limited to 6 mm - 14 mm acc. VDE |
|
Material |
|
|
Contact plating |
4 µm Ag |
|
Contacts |
Bronze (CuSn6) |
|
Insert |
Polyamide (PA 6 30 % GR) |
|
Locking element |
Zinc diecast (ZnAl4Cu1) |
|
Shell |
Polyamide (PA 6 30 % GR) |
|
Strain relief |
Polyacetal (POM) |
|
Environmental |
|
|
Temperature range |
-30 °C to +80 °C |
|
Protection class |
IP20 |
|
Flammability Rating |
UL 94 HB |
