Item # SWARM5FXILS

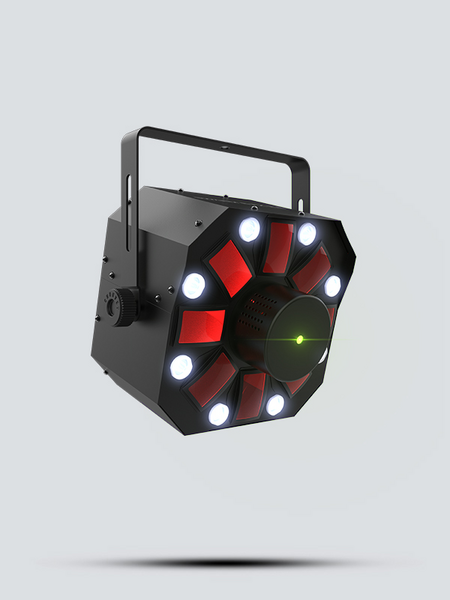

3-IN-1 LED LIGHT, INCLUDES RGBAW ROTATING DERBY, RED/GREEN LASER, AND WHITE STROBE EFFECT
Item # SWARM5FXILS
3-IN-1 LED LIGHT, INCLUDES RGBAW ROTATING DERBY, RED/GREEN LASER, AND WHITE STROBE EFFECT
- UM: EA
- Estimated Weight: 12.0
- Brand: CHAUVET DJ
Your parties deserve the excitement of Swarm 5 FX ILS. This 3-in-1 LED light that includes an RGBAW rotating derby, red/green laser, and white strobe effect and compatibility with the cutting edge Integrated Lighting System (ILS) that makes creating coordinated light shows across different fixture types easy. Swarm 5 FX ILS also features D-Fi USB compatibility for wireless Master/Slave or DMX control. Flexibility is even greater with automated and sound-activated programs, or Master/Slave and DMX modes and separate color and program control.
Features:
- 3-in-1 LED light that includes an RGBAW rotating derby, red/green laser, and white strobe effect
- ILS compatibility for use in the ILS ecosystem
- D-Fi USB compatibility for wireless Master/Slave or DMX control
- Laser projects thousands of red and green laser beams
- Operation allows for separate color and program control
- Increase control options using automated and sound-activated programs, or Master/Slave and DMX modes
- Save time running cables and extension cords by power linking multiple units
- Fits best inside the CHS-40 VIP gear bag
| DMX Channels | 9 |
|---|---|
| DMX Connectors | 3-pin XLR |
| Light Source | (Swarm): 5 LEDs (1 red, 1 green, 1 blue, 1 amber, 1 white) 3 W, (300 mA), 50,000 hours life expectancy(strobe): 8 LEDs (white) 1 W, (300 mA), 50,000 hours life expectancy(laser): 520 nm/30 mW (green) laser diode, 650 nm/100 mW (red) laser diode |
| Strobe Rate | 0 to 20 Hz |
| Beam Angle | (strobe): 17° |
| Field Angle | (strobe): 35° |
| Coverage Angle | (laser): 100°(Swarm): 65° |
| Illuminance | (strobe): 823 lux @ 2 m |
| Power Linking | 15 units @ 120 V; 26 units @ 230 V |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power and Current | 62 W, 0.5 A @ 120 V, 60 Hz; 62 W, 0.3 A @ 230 V, 50 Hz |
| Weight | 9.8 lb (4.5 kg) |
| Size | 9.75 x 11.7 x 12.2 in (248 x 298 x 310 mm) |
| Approvals | CE, FDA, RoHS, UKCA |
