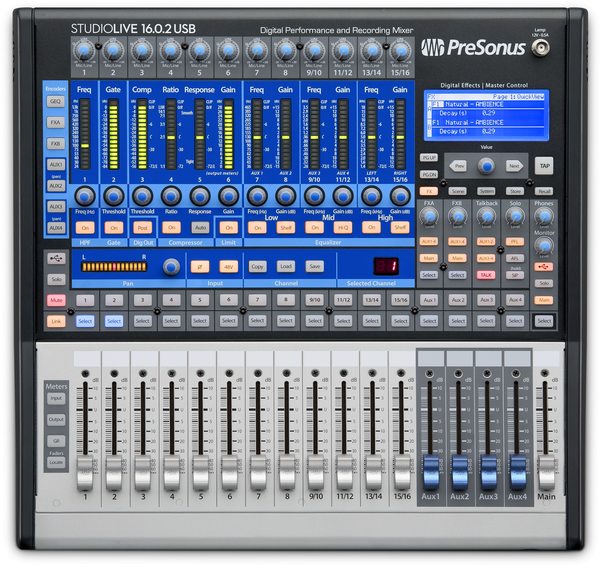

When you’re mixing a live event or have an artist in the studio, you need to be able to work quickly. The StudioLive® 16.0.2 USB’s familiar, easy-to-use interface keeps all critical controls visible and accessible —not buried in menus or layers. Our design philosophy is simple: One fader for every mono or stereo channel; one output for every bus. Add to that easily accessed, color-coded function buttons; rotary trim controls; and clearly labeled, individual knobs for EQ and dynamics processing. Aux sends have their own physical controls. Every channel has a big, bright meter display. But don’t let the analog feel fool you: The StudioLive 16.0.2 USB offers the power of modern digital mixing, multitrack recording, wireless remote control, and more.

FEATURES

• High-headroom Class A XMAX mic preamplifier
• XLR mic and balanced ¼-inch line inputs
• 60 mm precision fader
• High-headroom Class A XMAX mic preamplifier (Ch. 9, 11, 13, and 15)
• XLR mic inputs (Ch. 9, 11, 13, and 15)
• Balanced ¼-inch line inputs (Ch. 9-16)
• Unbalanced RCA line inputs (Ch. 13-16)
• 60 mm precision fader (4 stereo)
• 4 Auxiliary buses (pre/post-fader send)
• 3-band semi-parametric EQ (individual band on/off)
• Full-featured compressor
• Standard downward expander
• Limiter
• Phase reverse (12 mic preamplifiers only)
• Pan with dedicated 15-LED display
• Stereo link for input channels and aux buses
• Highpass filter
• PreSonus® Studio One® Artist digital audio workstation for Mac® and Windows ®
• PreSonus Capture™ live-recording software for Mac and Windows
• PreSonus UC Surface mixer-control software for Mac, Windows, Android™, and iPad®
• Free downloadable PreSonus QMix®-UC software for iPhone®/iPod touch® and Android™ provides wireless remote control of aux mixes
• Scene and FX Preset recall
• Main Volume, FXA, and FXB output levels
• FXA and FXB assign/unassign to Mains
