Item # SBC203-US
DUAL DOCKING CHARGER FOR 2 SLXD OR TRANSMITTERS SB903 RECHARGEABLE BATTERIES- US PWR SUPPLY INCLUDED
Item # SBC203-US
DUAL DOCKING CHARGER FOR 2 SLXD OR TRANSMITTERS SB903 RECHARGEABLE BATTERIES- US PWR SUPPLY INCLUDED
- UM: EA
- Estimated Weight: 2.0
- Brand: SHURE

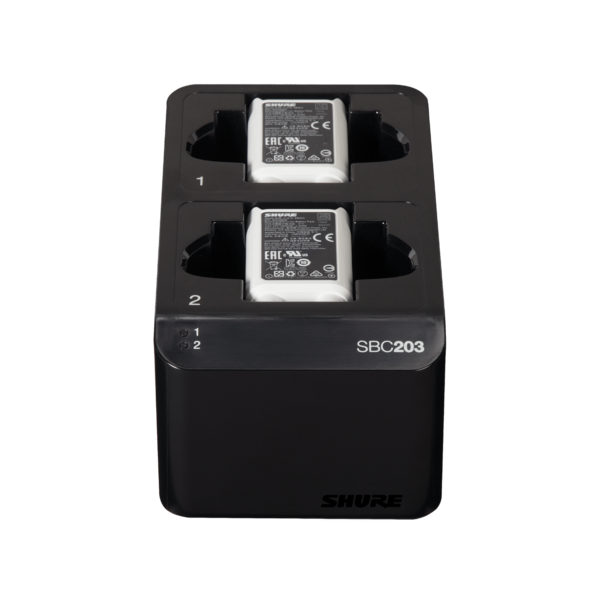

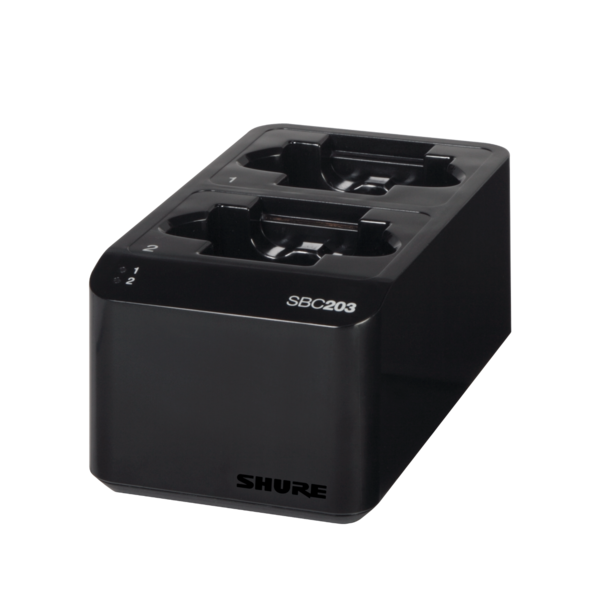

The Shure SBC203-US is a compact, portable dual-docking charger designed to simultaneously charge two SB903 lithium-ion batteries or compatible Shure wireless bodypack and handheld transmitters. Ideal for use with Shure SLX-D Digital Wireless systems, the SBC203 provides intelligent charging with LED indicators for battery status, ensuring reliable and fast power management. Its sleek, desktop-friendly design makes it perfect for small-scale wireless system setups in conference rooms, houses of worship, education spaces, and portable AV rigs. With its intelligent charging circuitry and rugged build quality, the SBC203 is an essential accessory for keeping Shure digital wireless gear powered and ready.
Features
-

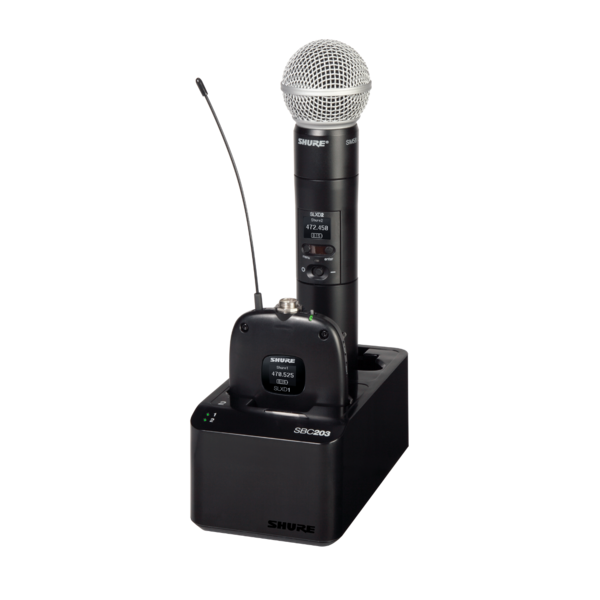

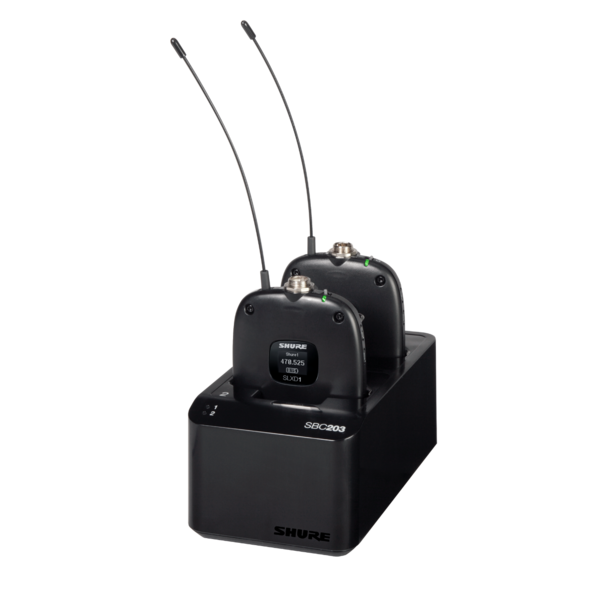

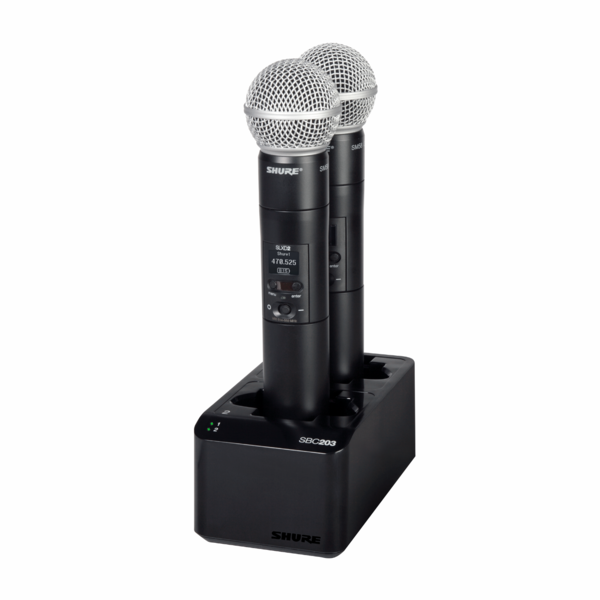

Charge up to two SB903 batteries or compatible bodypack and/or handheld transmitters
-
Securely connect multiple chargers
-
LED icons for battery status
|
Charge Current |
625 mA or 250 mA (Lower current used when using another power source, or operating between 0°C and 10°C) |
|
Charge Time |
50% = 1 hour : 15 minutes; 100% = 2 hours : 30 minutes |
|
External Power Supply |
SBC10-USB15W or SBC10-USB15WS |
|
Power Requirements |
5 V DC, 3 A max. |
|
Charging Temperature Range for Battery |
0 °C to 45 °C (32 °F to 113 °F) |
|
Dimensions |
66 x 99 x 165 mm (2.6 x 3.9 x 6.5 in.), H x W x D |
|
Weight |
284 g |
|
Housing |
ABS |
|
Power Supply | |
|
Input Voltage Range |
100 to 240 V AC |
|
Operating Frequency |
50 Hz to 60 Hz |
|
Maximum Input Power |
0.6 A at 100 V AC full load |
|
Output Voltage |
4.75 to 5.25 V DC |
|
Maximum Output Power |
3.0 A at 5 V |
|
Operating Temperature Range |
0 °C to 60 °C (32 °F to 140 °F) |
