Item # SB903
RECHARGEABLE LITHIUM-ION BATTERY FOR SHURE SLXD SYSTEMS
Item # SB903
RECHARGEABLE LITHIUM-ION BATTERY FOR SHURE SLXD SYSTEMS
- UM: EA
- Estimated Weight: 1.0
- Brand: SHURE

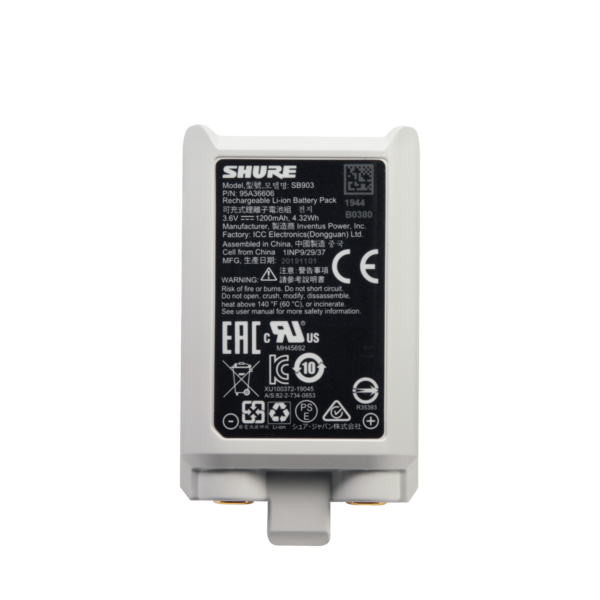

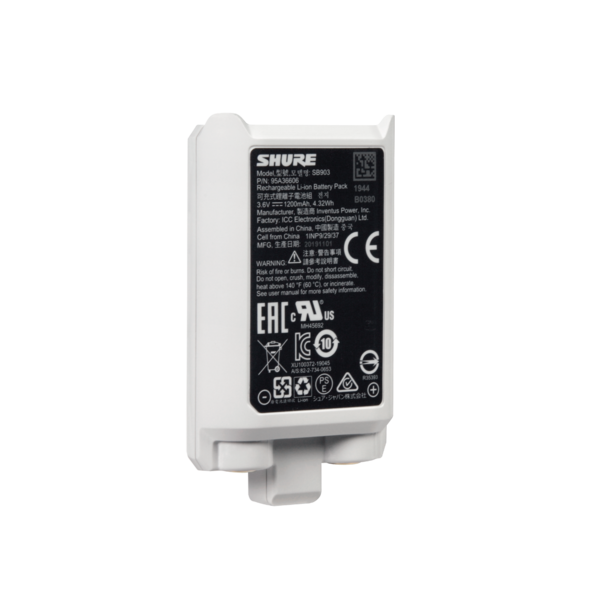

The SB903 lithium-ion rechargeable battery powers the SLX-D transmitters. Use the SBC10-903 single bay or SBC203 dual bay chargers to recharge SB903 batteries.
Always fully charge a new battery before first use. To fully charge a new SB903 battery, it must be placed directly in the charger. After the first charge, the battery can be charged by docking the transmitter in the SBC203 dual-bay charging station.
|
Charge Voltage |
4.2 V (±0.03 V) |
|
Charge Current |
SBC10-903: 220 mA, SBC203: 625 mA (normal), 250 mA (reduced) |
|
Nominal Voltage |
3.6 V |
|
Nominal Capacity |
1200 mAh |
|
Housing |
Molded Polycarbonate |
|
Charging Temperature Range |
SBC10-903: 10 °C to 45 °C (50 °F to 113 °F), SBC203: 0 °C to 10 °C (32 °F to 50 °F), reduced, and 10 °C to 45 °C (50 °F to 113 °F), normal |
|
Dimensions |
14.5 x 32.5 x 55.5 mm (0.57 x 1.28 x 2.19 in.), H x W x D |
|
Weight |
28 g |
