Item # PM-MOUNT-6UP(ADA)
POLESTAR, POLE ADAPTER FOR > 6" DIAMETER POLES, STAINLESS ,POLE ADAPTER PLATE ONLY
Item # PM-MOUNT-6UP(ADA)
POLESTAR, POLE ADAPTER FOR > 6" DIAMETER POLES, STAINLESS ,POLE ADAPTER PLATE ONLY
- UM: EA
- Estimated Weight: 5.0
- Brand: ADAPTIVE TECHNOLOGIES

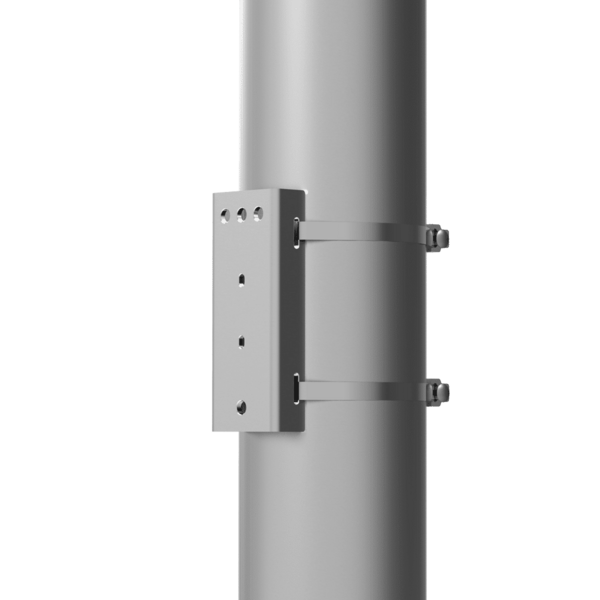

For 6”/154 mm diameter and larger poles and columns, use the PM-Mount-6UP. This all-stainless adapter offers a natural finish and supports up to 300 lb./68 Kg, in a vertical load with a 5:1 design factor. It accommodates the PM Series Support Arm, Dual Adapter and includes hardware for their attachment. There are four standard permanent band kits available in different lengths and are sold separately. Custom lengths are also available.
Features
Mounts to round surfaces including poles and columns
All stainless steel construction
Load rated components
Components use common hole patterns
Cosmetic trim components included
Job-site ready
SPECIFICATIONS:
Material: Stainless Steel Finish: Passivated Color: Silver WLL: 300 lb / 136.078 (*WLL = Working Load Limit)
