Item # PA805DB-RSMA
PASSIVE DIRECTIONAL ANTENNA 2.4 & 5.8 GHZ
Item # PA805DB-RSMA
PASSIVE DIRECTIONAL ANTENNA 2.4 & 5.8 GHZ
- UM: EA
- Estimated Weight: 1.0
- Brand: SHURE

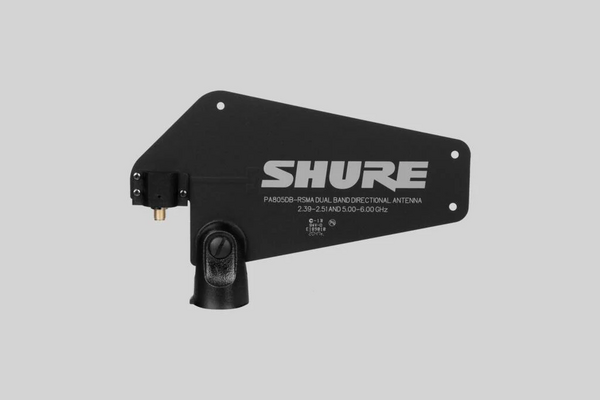

The Shure PA805DB-RSMA is a passive, dual-band directional antenna optimized for Shure GLX-D+ Digital Wireless Systems. Operating in both the 2.4 GHz and 5.8 GHz frequency bands, this antenna significantly enhances signal reception by focusing the pickup pattern toward active transmitters while rejecting unwanted RF noise from other directions. The antenna features an RSMA connector for direct compatibility with GLXD+ receivers and offers an integrated mount for easy positioning on a mic stand or wall bracket.
- Improved wireless reception: 8dB of passive directional antenna gain
- Improved rejection of interference from 2.4 and 5.8GHz sources: 24dB front-to-back ratio for improved rejection of off-axis signals
- Can be painted with non-metallic paint to match mounting surface
- Includes 3m RSMA cable
The new PA805DB-RSMA Dual Band Passive Directional Antenna improves the reception of the half-rack GLXD4R+ receivers and of the GLXD+FM Dual Band Frequency Manager by up to 8dB. Improved filtering of interference from 2.4 and 5.8GHz sources deliver 24dB front-to-back rejection ratio of off-axis signals.
