Item # NSB 8.8 B STOCK
8X8 AVB STAGEBOX - B STOCK - FULL WARRANTY (LIMITED QTY AVAILABLE)
Item # NSB 8.8 B STOCK
8X8 AVB STAGEBOX - B STOCK - FULL WARRANTY (LIMITED QTY AVAILABLE)
- UM: EA
- Estimated Weight: 8.0
- Brand: PRESONUS
The PreSonus NSB 8.8 networked stage box lets you put your analog I/O for your StudioLive Series III digital mixer wherever you need it. Equipped with eight digitally controlled XMAX mic preamps, eight balanced line-level inputs, and eight analog outputs, the NSB 8.8 integrates seamlessly into StudioLive Series III digital mixers with a single Ethernet connection. Remote control input trims, phantom power, and more directly from your StudioLive Series III console or from UC Surface remote mixing software on your tablet or laptop.
Features
8x8 network stage box for StudioLive Series III console mixers
8 digitally controlled XMAX mic/line inputs with gain compensation for shared streams
8 line outputs
Easy configuration from StudioLive Series III console mixers and UC Surface
Built-in 2-port AVB switch with locking Ethernet connections for easy point-to-point and daisy-chain network configurations
Rugged all-metal stage box enclosure
Optional rack ears
Compatible with stage pockets from Ace Backstage
|
Microphone Preamplifier |
|
|
Input Type |
XLR Female, balanced |
|
Frequency Response to Main Output (at unity gain) |
20-20 kHz, ±0.5 dBu |
|
Input Impedance |
1 kO |
|
THD to Main Output |
<0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd |
|
S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd) |
94 dB |
|
Common Mode Rejection Ratio (1 kHz at unity gain) |
65 dB |
|
Gain Control Range (±1 dB) |
0 dB to +60 dB |
|
Maximum Input Level (unity gain) |
+12 dBu |
|
Phantom Power (±2 VDC) |
48 VDC, switchable per channel |
|
Line Inputs |
|
|
Type |
¼” TRS Female, balanced |
|
Frequency Response to Main Output (at unity gain) |
20-20 kHz, ±0.5 dBu |
|
Input Impedance |
10 kO |
|
THD to Main Output |
<0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd |
|
S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd) |
94 dB |
|
Maximum Input Level |
+18 dBu |
|
XLR Outputs |
|
|
Type |
XLR Male, balanced |
|
Maximum Output Level |
+24 dBu, ±0.5 dBu |
|
Output Impedance |
100O |
|
Digital Audio |
|
|
ADC Dynamic Range |
115 dB (A-wtd, 48 kHz) |
|
DAC Dynamic Range |
115 dB (A-wtd, 48 kHz) |
|

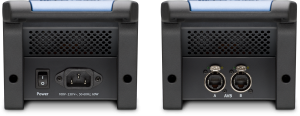

AVB Audio Network Ports |
Locking XLR Ethernet |
|
Sampling Rate |
48 kHz, 44.1 kHz |
|
Power |
|
|
Connector |
Locking IEC |
|
Input-Voltage Range |
90 to 230 VAC (±10%) |
|
Physical |
|
|
Height |
5.2” (132 mm) |
|
Width |
16.7” (424 mm) |
|
Depth |
4.5” (114 mm) |
|
Weight |
5.4 lbs. (2.4 kg) |
