Item # MM-120
MULTIMOUNT, 120 LB/54 KG, INDOOR SPEAKER WALL MOUNT (BOTTOM/BACK MOUNT FOR 4 HOLE MOUNTING PATTERNS)
Item # MM-120
MULTIMOUNT, 120 LB/54 KG, INDOOR SPEAKER WALL MOUNT (BOTTOM/BACK MOUNT FOR 4 HOLE MOUNTING PATTERNS)
- UM: EA
- Estimated Weight: 8.6
- Brand: ADAPTIVE TECHNOLOGIES

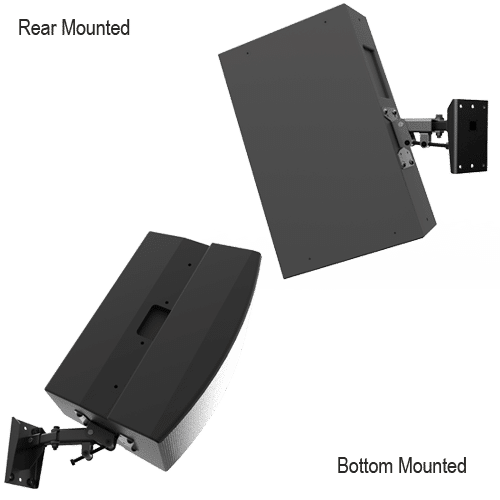

The MultiMount MM-120 Indoor Speaker Wall Mount supports speakers from its back panel, weighing up to 120 lb., and is fully adjustable in both pan and tilt aiming.
The MultiMount MM-120 Indoor Speaker Wall Mount accommodates speakers that offer four-hole mounting patterns on the back panel of the speaker. (See dimensions section.)
This mount is exceptionally easy to install and use with large format loudspeakers. They are safe and offer greater than a 5:1 design factor. Once inserted, the mounting plate supports the weight of the speaker leaving the installer’s hands free to complete the wiring and positioning process.
Features
Weather resistant for covered outdoor and indoor use
Infinite tilt adjustments with thumb-wheel.
Pan angle secured by clutch style lock.
Mounts to walls studs or optional stud plate.
Telescoping arm secures in three positions.
Wall plate makes installation safe and quick.
Adapts to 4 hole mounting patterns including 3-7/16 x 6-7/8 and 2-3/4 x 5
|
Material |
Structural Steel Alloy |
|
Finish |
Powder Coat |
|
Tilt Adjustment |
45 degrees |
|
Swivel Adjustment |
180 degrees |
|
Color |
Black |
|
WLL |
120 lbs. (45 Kg) max. |
|
Design Factor |
5:1 ratio |
|
Net wgt |
11 lbs. (5 Kg) each |
|
Shipping wgt |
13 lbs. (5.9 Kg) each |
|
Pack Count |
1 per carton |
