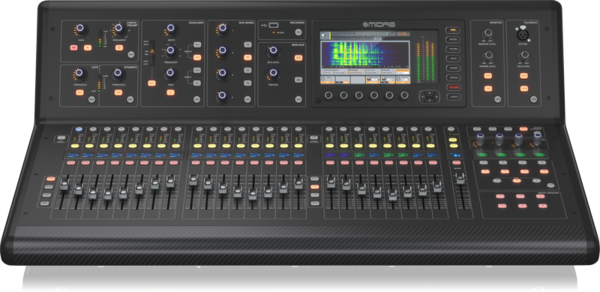

Item # M32 LIVE_US1
PROFESSIONAL DIGITAL CONSOLE FOR LIVE & STUDIO WITH 40 CH (32 INPUT CH, 8 AUX CH, 8 FX RETURN CH)
Item # M32 LIVE_US1
PROFESSIONAL DIGITAL CONSOLE FOR LIVE & STUDIO WITH 40 CH (32 INPUT CH, 8 AUX CH, 8 FX RETURN CH)
- UM: EA
- Estimated Weight: 78.0
- Brand: MIDAS
Digital Console for Live and Studio with 40 Input Channels, 32 Midas PRO Microphone Preamplifiers and 25 Mix Buses and Live Multitrack Recording
Features
Live performance and studio recording digital console with up to 40 simultaneous input channels
32 award-winning Midas PRO microphone preamplifiers
25 time-aligned and phase-coherent mix buses
AES50 networking allows up to 96 inputs and 96 outputs
32 bi-directional channels of live recording/playback on dual SD/SDHC (cards not included)
Up to 3 hours of 32 channel PCM recording in one session - stored as uncompressed WAV files
High-performance carbon fibre, aluminium and high-impact steel structure
40 bit floating point digital signal processing
8 DCA and 6 mute groups
8 digital signal processing effects engines
25 Midas PRO motor faders
Daylight viewable 7" full colour TFT display screen
32 x 32 channel USB 2.0 audio interface
DAW remote control emulations of Mackie Control* and HUI* protocols
Optional wireless remote control with Midas Apps for iPhone* and iPad*
Auto-ranging universal switch-mode power supply
|
Processing |
|
|
Input Processing Channels |
32 Input Channels, 8 Aux Channels, 8 FX Return Channels |
|
Output Processing Channels |
16 |
|
16 aux buses, 6 matrices, main LRC |
100 |
|
Internal Effects Engines (True Stereo / Mono) |
16 |
|
Internal Show Automation (structured Cues / Snippets) |
500 / 100 |
|
Internal Total Recall Scenes (incl. Preamplifiers and Faders) |
100 |
|
Signal Processing |
40-Bit Floating Point |
|
A/D Conversion (8-channel, 96 kHz ready) |
114 dB Dynamic Range (A-weighted*) |
|
D/A Conversion (stereo, 96 kHz ready) |
120 dB Dynamic Range (A-weighted*) |
|
I/O Latency (Console Input to Output) |
0.8 ms |
|
Network Latency (Stage Box In > Console > Stage Box Out) |
1.1 ms |
|

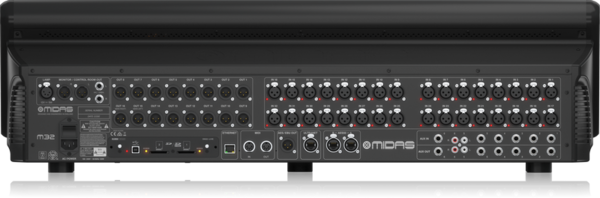

Connectors |
|
|
Midas PRO Series Microphone Preamplifier (XLR) |
32 |
|
Talkback Microphone Input (XLR) |
1 |
|
RCA Inputs / Outputs |
2 |
|
XLR Outputs |
16 |
|
Monitoring Outputs (XLR / ¼" TRS Balanced) |
2 |
|
Aux Inputs/Outputs (¼" TRS Balanced) |
6 |
|
Phones Output (¼" TRS) |
2 (Stereo) |
|
Digital AES/EBU Output (XLR) |
1 |
|
AES50 Ports (Klark Teknik SuperMAC) |
2 |
|
Expansion Card Interface |
32 Channel Audio Input / Output |
|
ULTRANET P-16 Connector (No Power Supplied) |
1 |
|
MIDI Inputs / Outputs |
1 |
|
USB Type A (Audio and Data Import / Export) |
1 |
|
USB Type B, rear panel, for remote control |
1 |
|
Ethernet, RJ45, rear panel, for remote control |
1 |
|
Mic Input Characteristics |
|
|
Design |
Midas PRO Series |
|
THD+N (0 dB gain, 0 dBu output) |
<0.01% (unweighted) |
|
THD+N (+40 dB gain, 0 dBu to +20 dBu output) |
<0.03% (unweighted) |
|
Input Impedance (Unbalanced / Balanced) |
10 kO / 10 kO |
|
Non-Clip Maximum Input Level |
+23 dBu |
|
Phantom Power (Switchable per Input) |
+48 V |
|
Equivalent Input Noise @ +45 dB gain |
-125 dB (22 Hz-22 kHz, unweighted) |
|
CMRR @ Unity Gain (Typical) |
>70 dB |
|
CMRR @ 40 dB Gain (Typical) |
>90 dB |
|
Input/Output Characteristics |
|
|
Frequency Response @ 48 kHz Sample Rate |
0 dB to -1 dB (20 Hz-20 kHz) |
|
Dynamic Range, Analogue In to Analogue Out |
106 dB (22 Hz-22 kHz, unweighted) |
|
A/D Dynamic Range, Output (Typical) |
109 dB (22 Hz-22 kHz, unweighted) |
|
Crosstalk Rejection @ 1 kHz, Adjacent Channels |
100 dB |
|
Output level, XLR Connectors (Nominal / Maximum) |
+4 dBu / +21 dBu |
|
Output Impedance, XLR Connectors (Unbalanced / Balanced) |
50 O / 50 O |
|
Input impedance, TRS Connectors (Unbalanced / Balanced) |
20 kO / 40 kO |
|
Non-Clip Maximum Input Level, TRS Connectors |
+21 dBu |
|
Output Level, TRS (Nominal / Maximum) |
+4 dBu / +21 dBu |
|
Output Impedance, TRS (Unbalanced / Balanced) |
50 O / 50 O |
|
Phones Output Impedance / Maximum output Level |
40 O / +21 dBu (Stereo) |
|
Residual Noise Level, Out 1-16 XLR Connectors, Unity Gain |
-85 dBu 22 Hz-22 kHz unweighted |
|
Residual Noise Level, Out 1-16 XLR Connectors, Muted |
-88 dBu 22 Hz-22 kHz unweighted |
|
Residual Noise Level, TRS and s Monitor out XLR Connector |
-83 dBu 22 Hz-22 kHz unweighted |
|
Display |
|
|
Main Screen |
7" TFT LCD, 800 x 480 Resolution, 262k Colours |
|
Channel LCD Screen |
128 x 64 LCD with RGB Colour Backlight |
|
Main Meter |
24 Segment (-57 dB to Clip) |
|
Power |
|
|
Switch-Mode Power Supply |
Auto-Ranging 100-240 VAC (50/60 Hz) ± 10% |
|
Power Consumption |
120 W |
|
Physical |
|
|
Standard Operating Temperature Range |
5°C – 40°C (41°F – 104°F) |
|
Dimensions |
891 x 612 x 256 mm (35.1 x 24.1 x 10.1") |
|
Weight |
25 kg (55 lbs) |
