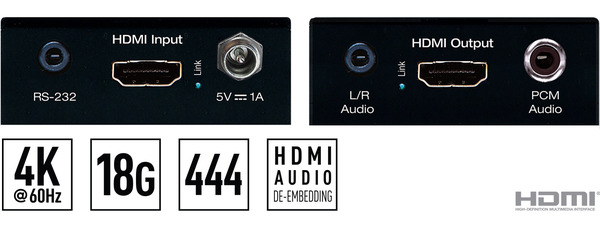

Item # KD-FIX418A-3
4K/18G HDMI FIXER, BOOSTER, BUFFER OF EDID, HDCP, HOT PLUG, 18G TO 10G COMPRESSION/DECOMPRESSION
- MAP: $292.00 / EA
- List Price: $292.00 / EA
- Log in to see if custom discounts apply
- Pkg Qty: 1
- Case Qty: 1
Item # KD-FIX418A-3
4K/18G HDMI FIXER, BOOSTER, BUFFER OF EDID, HDCP, HOT PLUG, 18G TO 10G COMPRESSION/DECOMPRESSION
- Brand: KEY DIGITAL
Audio De-embedding: HDMI input audio is de-embedded on an analog 3.5mm stereo and digital PCM connector
18G Down-Convert: Incoming 18Gbps bandwidth HDMI signals may be downconverted for integration with existing 10.2Gbps systems/infrastructure
Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
HDCP Licensing: Fully licensed and compatible with HDCP 2.2
HDR10 and Dolby Vision: More life-like images through a greater range of luminance levels
Resolution Support: Supports all SD, HD, and VESA (VGA, SVGA, XGA, WXGA, SXGA, UXGA) up to 4096x2160p
Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
Full Buffer System™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, Hot Plug management, and EDID control handshake
EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from the output/display
Lossless Compressed Digital Audio: Dolby® TrueHD, Dolby® Digital Plus, DTS-HD Master Audio™, and Dolby Atmos
ARC Pass-thru: From connected ARC supported display to connected ARC supported HDMI source
CEC Pass-thru: From connected display to selected HDMI source
Control: RS-232 control and connectivity status
