FA-TR4 | NEW CONSTRUCTION RING FAP40T & 4" STRATEGY SERIES

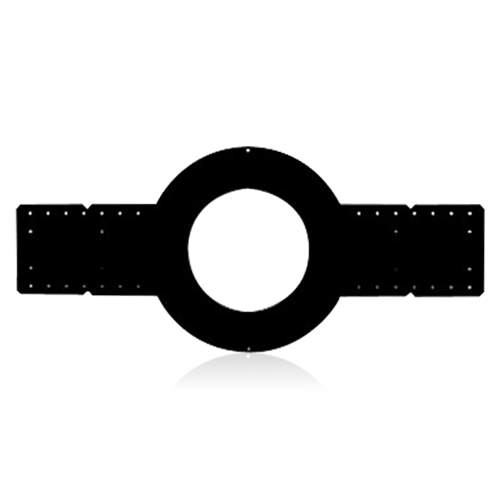

The Strategy Series FA-TR4 trim ring/rough-in bracket, for wall or ceiling-mount applications, installs prior to the drywall and serves as a pattern cut-out for the drywall contractor to finishout the wall leaving the proper opening for a FA97-4 or FA95-4 enclosure. This step identifies pre-wire location, expediting sound system installation. Trim ring measures 25 5/8" L and will accommodate 3/8" to 1 1/4" drywall. Mounting holes are provided to match both 16" and 24" center studs. FA-TR4 is construced of 20-gauge galvanized steel.NOTE: Trim ring alone will not allow direct installation of Strategy Series Grilles. An enclosure or FAPR Plaster Ring is required for baffle installation.

Features:

• Accommodates from 3/8" to 1 1/4" Drywall Thickness
• Constructed of 20-Gauge Steel
• Installs Prior to Drywall and Serves as a Pattern Cutout for the Drywall Installer
• Mounts on Either 16" Centered or 24" Centered Joists or Studs
