Item # DBH218-I-C
2 X 18" SUBWOOFER, PASSIVE INSTALL VERSION, CUSTOM COLOR
Click image to enlarge
Item # DBH218-I-C
2 X 18" SUBWOOFER, PASSIVE INSTALL VERSION, CUSTOM COLOR
- Brand: DANLEY

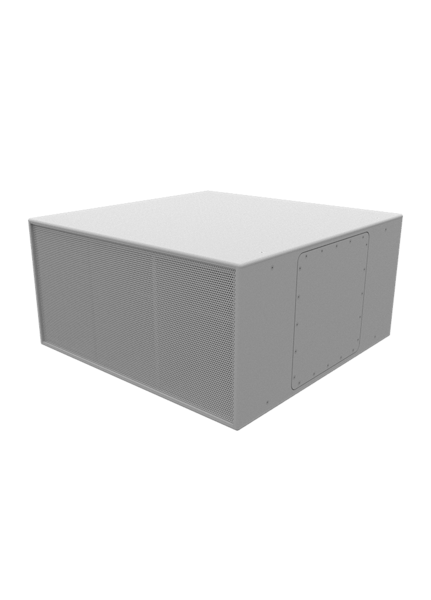

The DBH218-I-C is a front-loaded, folded horn subwoofer designed to enhance low-frequency sound reproduction. The enclosure utilizes a conventional horn-loaded design to improve efficiency and output, with optimal performance around 80 Hz. Multiple units can be combined to increase sound output and extend low-frequency response.
This model is configured with two 18-inch drivers and is suitable for club, music venue, and touring applications. The design supports scalable deployment for varying acoustic requirements.
| Operating Frequency Range | 34 Hz - 300 Hz |
|---|---|
| Continuous Output | 141 dB SPL |
| Peak Output | 147 dB SPL |
| Sensitivity | 112 dB SPL (2.83 V, 1 m) |
| Magnitude Response | 34 Hz - 300 Hz |
| Driver Complement | two 18" woofers |
| Rated Impedance | switchable 2ohm or two 4ohm loads |
| Power Rating | 3,600 W continuous |
