Description:

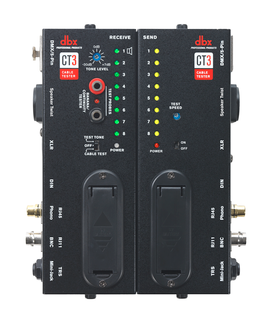

The dbx CT3 is an advanced cable testing unit allowing you to evaluate a large variety of cables with ease. The CT3 offers many common connectors such as RJ45, RJ11, MIDI, Speaker Twist, XLR, RCA Phono, BNC, DIN, TRS, TS, DMX, & Banana. It can be split into 2 parts, a SENDER and RECEIVER so preinstalled and long cables can be tested.

Features:

·        Tests up to 8-pin cables

·        2 piece chassis for testing installed cables

·        Test Tone Generator

·        Allows connection between different format connectors with ease

·        ‘Banana’ connector continuity tester with beeper and LED indicator

·        Super-rugged construction for durability and longer life

·        (2) DMX (5-pin) connectors for testing of 5 pin->to pin connections

·        (2) BNC connectors for testing of 2 pin->to pin connections

·        (2) RCA Phono connectors for testing of 2 pin->to pin connections

·        (2) XLR connectors (1 x Male, 1 x Female) for testing of 3 pin->to pin connections

·        (2) MIDI (5-pin DIN) connectors for testing of 5 pin->to pin connections

·        (2) Speaker Twist connectors for testing of 4 pin->to pin connections

·        (2) Banana connectors for testing of 1 pin->to pin connections

·        (2) 1/4” (6.3mm) TRS/TS connectors for testing of 3 pin->to pin connections

·        (2) RJ45 connectors for testing of 8P8C modular connections

·        (2) 1/8” (3.5mm) TRS/TS connectors for testing of 3 pin->to pin connections
