Item # COREPARQ120ILS

120W QUAD-COLOR (RGBW) CHIP-ON-BOARD LED, PRODUCES FULL SPECTRUM OF LIGHT, ILS COMPATIBILITY

  • Call for Price
  • Log in to see if custom discounts apply
  • Case Qty: 4
    COREPARQ120ILS 120W QUAD-COLOR (RGBW) CHIP-ON-BOARD LED, PRODUCES FULL SPECTRUM OF LIGHT, ILS COMPATIBILITY
    COREPARQ120ILS 120W QUAD-COLOR (RGBW) CHIP-ON-BOARD LED, PRODUCES FULL SPECTRUM OF LIGHT, ILS COMPATIBILITY
    Click image to enlarge
    COREPARQ120ILS 120W QUAD-COLOR (RGBW) CHIP-ON-BOARD LED, PRODUCES FULL SPECTRUM OF LIGHT, ILS COMPATIBILITY
    COREPARQ120ILS 120W QUAD-COLOR (RGBW) CHIP-ON-BOARD LED, PRODUCES FULL SPECTRUM OF LIGHT, ILS COMPATIBILITY

    Item # COREPARQ120ILS

    120W QUAD-COLOR (RGBW) CHIP-ON-BOARD LED, PRODUCES FULL SPECTRUM OF LIGHT, ILS COMPATIBILITY

    • UM: EA
    • Estimated Weight: 13.0
    • Brand: CHAUVET DJ

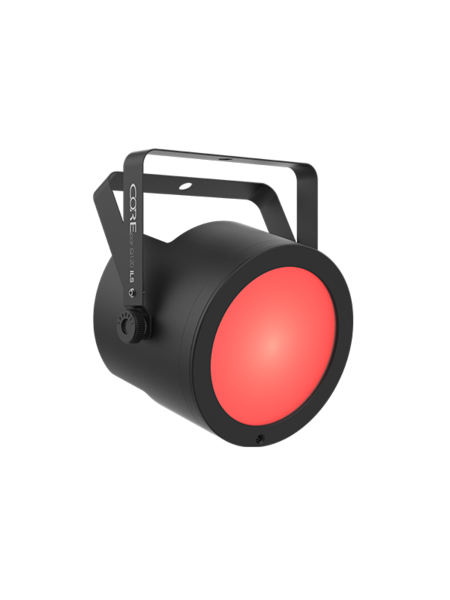

    COREpar Q120 ILS is a 120-watt quad-color (RGBW) COB (Chip-on-Board) LED that produces a full spectrum of light with unsurpassed color mixing. Its robust housing withstands the harshness of traveling from gig to gig and its sit-flat housing design hugs the floor and features power and DMX outlets on the side of the unit for easy connections. Among the powerful features of the COREpar Q120 is ILS compatibility for use in the Integrated Lighting System (ILS) ecosystem that makes creating coordinated light shows across different fixture types easy. D-Fi USB compatibility is also board for wireless Master/Slave or DMX control. Achieve flicker-free video operation with high-frequency LED dimming and the included magnetic Fresnel lens allows the flexibility to go from ultra-wide to narrow beam in seconds. Create customized colors using the built-in LED display and achieve smooth LED fading with built-in dimming curves.

    Features

    • COB (Chip-on-Board) LED produces a full spectrum of light with unsurpassed color mixing

    • ILS compatibility for use in the ILS ecosystem

    • D-Fi USB compatibility for wireless Master/Slave or DMX control

    • Included magnetic Fresnel lens allows the flexibility to go from ultra-wide to narrow beam in seconds

    • Withstand the harshness of traveling from gig to gig with a robust housing

    • Sit-flat housing design hugs the floor and features power and DMX outlets on the side of the unit

    • Achieve flicker-free video operation with high-frequency LED dimming

    • Save time running cables and extension cords by power linking multiple units

    • Point-and-shoot operation of static colors and automated programs with the optional IRC-6 remote

    • Create customized colors using the built-in LED display

    • Achieve smooth LED fading with built-in dimming curves

    • Easily transports in the optional CHS-40 VIP Gear Bag

    DMX Channels

    4 or 9

    DMX Connectors

    3-pin XLR

    Light Source

    1 COB LED (quad-color RGBW) 120 W, (6.9 A), 50,000 hours life expectancy

    Strobe Rate

    0 to 29 hz

    Beam Angle

    (without lens) 56°; (with lens) 20°

    Field Angle

    (without lens) 100°; (with lens) 30°

    Illuminance

    (without lens) 868 lux @ 2 m; (with lens) 4,639 lux @ 2 m

    Power Linking

    6 units @ 120 V; 10 units @ 230 V

    Input voltage

    100 to 240 VAC, 50/60 Hz (auto-ranging)

    Power and Current

    100 W, 1.3 A @ 120 V, 60 Hz; 94 W, 0.7 A @ 230 V, 50 Hz

    Weight

    4.6 lbs. (2.1 kg)

    Size

    8.9 x 7.4 x 9 in (225 x 188 x 228 mm)

    Approvals

    CE, RoHS, UKCA

    Color Temperature Range

    2700 K – 6000 K

    Cable Length

    5ft (1.5 m)

    Bracket Mounting Hole

    13 mm
