Item # CBT-500

AUDIO CABLE TESTER DIAGNOSES SIGNAL FAILURE IN XLR, PHONE, PHONO, SPEAKON, DIN, ETHERNET, 75-OHM BNC

  • MAP: $89.95 / EA
  • List Price: $122.95 / EA
  • Log in to see if custom discounts apply
  • Case Qty: 1
    CBT-500 AUDIO CABLE TESTER DIAGNOSES SIGNAL FAILURE IN XLR, PHONE, PHONO, SPEAKON, DIN, ETHERNET, 75-OHM BNC
    CBT-500 AUDIO CABLE TESTER DIAGNOSES SIGNAL FAILURE IN XLR, PHONE, PHONO, SPEAKON, DIN, ETHERNET, 75-OHM BNC
    CBT-500 AUDIO CABLE TESTER DIAGNOSES SIGNAL FAILURE IN XLR, PHONE, PHONO, SPEAKON, DIN, ETHERNET, 75-OHM BNC
    CBT-500 AUDIO CABLE TESTER DIAGNOSES SIGNAL FAILURE IN XLR, PHONE, PHONO, SPEAKON, DIN, ETHERNET, 75-OHM BNC
    Click image to enlarge
    CBT-500 AUDIO CABLE TESTER DIAGNOSES SIGNAL FAILURE IN XLR, PHONE, PHONO, SPEAKON, DIN, ETHERNET, 75-OHM BNC
    CBT-500 AUDIO CABLE TESTER DIAGNOSES SIGNAL FAILURE IN XLR, PHONE, PHONO, SPEAKON, DIN, ETHERNET, 75-OHM BNC
    CBT-500 AUDIO CABLE TESTER DIAGNOSES SIGNAL FAILURE IN XLR, PHONE, PHONO, SPEAKON, DIN, ETHERNET, 75-OHM BNC
    CBT-500 AUDIO CABLE TESTER DIAGNOSES SIGNAL FAILURE IN XLR, PHONE, PHONO, SPEAKON, DIN, ETHERNET, 75-OHM BNC

    Item # CBT-500

    AUDIO CABLE TESTER DIAGNOSES SIGNAL FAILURE IN XLR, PHONE, PHONO, SPEAKON, DIN, ETHERNET, 75-OHM BNC

    • UM: EA
    • Estimated Weight: 3.0
    • Brand: HOSA

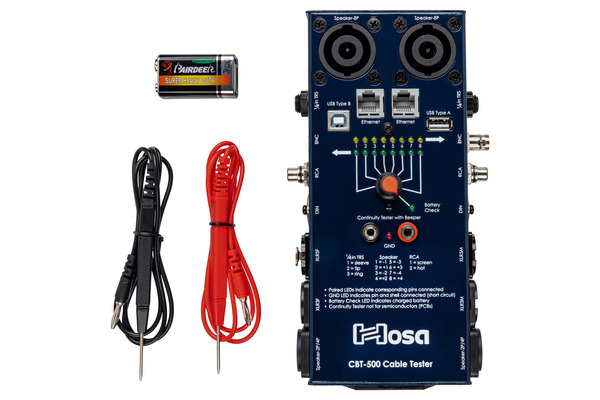

    The CBT-500 Cable Tester by Hosa Technology diagnoses signal failure in cables terminated with any combination of XLR, Phone, Phono, and speakON connectors, as well as DIN, Ethernet, 75-ohm BNC, and USB Type A to Type B cables. It is also equipped with removable leads to verify continuity of additional connectors and jacks. Operation requires one 9-volt battery (included).

    Dimensions (H x W x L)

    1.4" x 3.5" x 7.25"

    Weight

    1.8 lbs

    Chassis

    All-metal construction

    Compatible Connectors

    speakOn 2-pole/4-pole/8-pole,
    XLR Male to Female 3-pin/5-pin,
    RCA (Phono),
    DIN 3-pin/5-pin/7-pin/8-pin,
    1/4" (Phone) TS/TRS,
    USB Type A to Type B,
    RJ45

    Power

    One 9-volt battery (included)



    Hosa Technology Cable Tester Manual
