Item # C562 CM
SMALL, LOW-PROFILE MIC, FOR SURVEILLANCE OR RECORDING, XLR CONNECTOR
Item # C562 CM
SMALL, LOW-PROFILE MIC, FOR SURVEILLANCE OR RECORDING, XLR CONNECTOR
- UM: EA
- Brand: AKG / HARMAN

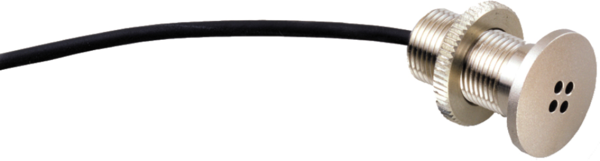

The C562 CM is a professional flush-mount boundary microphone, designed for permanent, invisible mounting in ceilings, walls, tables and stages. Owing to its high sensitivity, the C562 CM is characterized by excellent clarity and a consistent pickup anywhere around the mic.
The C562 CM is a perfect tool for surveillance or live recording. The included XLR phantom power adapter connects to the microphone cable through a miniature connector, so installation holes can be smaller than the diameter of the phantom power adapter.
Features
Hemispherical polar pattern
High sensitivity
Low-profile cylindrical design
|
General Specifications |
|
|
Audio frequency bandwidth |
20 - 20000 Hz |
|
Equivalent noise level |
16 dB-A |
|
Sensitivity |
25 mV/Pa |
|
Signal to Noise |
78 dB-A |
|
Recommended load impedance |
2000ohm |
|
Dimensions |
|
|
Length |
12 mm |
|
Height |
28 mm |
|
Diameter |
20 mm |
|
Net Weight |
30 g |
|
Design |
|
|
Finish |
matte nickel plated |
|
Audio Output |
|
|
Type |
Balanced XLR |
|
Gender |
Male |
|
Contacts |
3-pin |
|
Powering Interface |
|
|
Voltage |
9 to 52 V |
|
Current |
2 mA |
|
Device |
|
|
Boundary Layer Microphone |
Yes |
