Item # C555 L
LIGHT, RUGGED HEAD-WORN MIC FOR PRESENTERS WITH MINI XLR CONNECTOR FOR USE WITH B29 L BATTERY
Item # C555 L
LIGHT, RUGGED HEAD-WORN MIC FOR PRESENTERS WITH MINI XLR CONNECTOR FOR USE WITH B29 L BATTERY
- UM: EA
- Brand: AKG / HARMAN

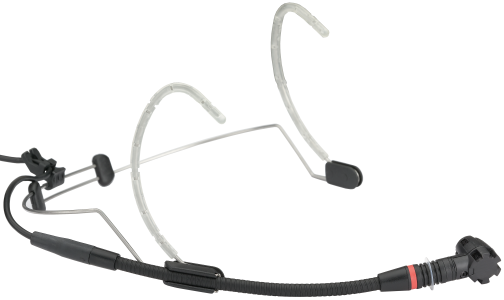

The C555 L high-performance head-worn condenser microphone is ideal for handsfree applications, including presentations or onstage performances. The C555 L rests securely and comfortably on the head, and can be attached to the left or right side of the behind-the-neck headband as desired. A transducer shock mount reduces handling noise to a minimum. The moisture shield ensures a high degree of humidity protection for the microphone.
The C555 L provides a three-pin mini XLR connector and can be used with all AKG WMS Series body-pack transmitters, B29 L battery power supply, or the MPA VL adapter for external phantom powering.
Features
Lightweight and adjustable-headband construction
Left and right flexible boom mounting
Cardioid polar pattern
Flexible shock mount
Moisture shield
Includes
1 x C555 L Head-Worn Microphone
1 x W444 Windscreen
|
General Specifications |
|
|
Type |
Pre-polarized condenser microphone |
|
Polar Pattern |
Cardioid |
|
Frequency Range |
80 - 20000 Hz |
|
Sensitivity |
25 mV/Pa (U=9V, R=10kOhm) |
|
Impedance @ 1kHz |
<200ohm |
|
Recommended load impedance |
>2000ohm |
|
Max SPL for 1% THD |
120dB |
|
Equivalent noise level (IEC 60268-4) |
30dBA |
|
Signal to Noise Ratio (@ 94dB SPL) |
63dBA |
|
Recommended Serial Resistor |
10kOhm (2kOhm - 10kOhm) |
|
Dimensions |
|
|
Length (mic only) |
195mm (7.7 in.) |
|
Max Diameter (mic only) |
134 mm (5.3 in.) |
|
Net Weight |
26g (0.9 oz.) |
|
Shipping Weight |
260g (9.2 oz.) |
|
Design |
|
|
Finish |
matte black |
|
Audio Output |
|
|
Type |
Mini XLR |
|
Gender |
Female |
|
Contacts |
3-pin |
|
Cable Length |
1.5m (5 ft.) |
|
Powering Interface |
|
|
Current Consumption |
<2mA (<500uA if U-9V, R=10kOhm) |
|
Operation voltage |
9V (2V - 10V) |
|
Application |
|
|
Live Vocal |
Yes |
|
Sports / Fitness |
Yes |
|
Assisted Listening |
Yes |
|
Sound Reinforcement |
Yes |
|
Presentation |
Yes |
|
Retail |
Yes |
|
Instrument |
|
|
Vocals |
Yes |
|
Device |
|
|
Headset Microphone |
Yes |
