Item # C516 ML
ULTRA-LIGHT HYPERCARDIOID INSTRUMENTAL MINIATURE MIC FOR ACCORDEON AND SPEAKERS WITH MINI XLR
Item # C516 ML
ULTRA-LIGHT HYPERCARDIOID INSTRUMENTAL MINIATURE MIC FOR ACCORDEON AND SPEAKERS WITH MINI XLR
- UM: EA
- Estimated Weight: 1.8
- Brand: AKG / HARMAN

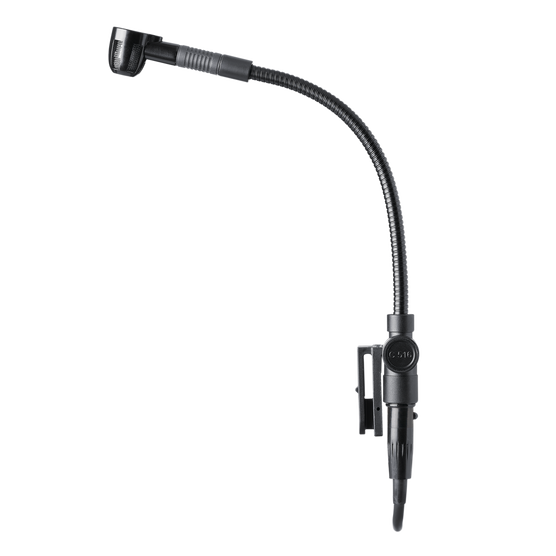

The C516 ML professional miniature instrumental microphone, part of the MicroMics family, is designed for use on accordions, pianos, guitar speakers and keyboard/organ cabinets. The C516 ML comes with a wide variety of mounting materials, such as screws and adhesive pads for easy installation on the instrument or amp, and an A400 adapter plate for easy mounting onto wireless body-pack transmitters PT40/45/450/470.
Features
Cardioid polar pattern
Flexible shock mount
Rugged, highly stable gooseneck
Detachable microphone cable
Established as an industry-standard accordion mic
Includes
1 x C516 Microphone
1 x W44 Windscreen
1 x Microphone Bag
1 x Mini XLR to Mini XLR Cable (1.5 m/5 ft.)
1 x A400 Adaptor Plate
1 x Adhesive Compound
1 x Double-Sided Adhesive Rubber Plate
1 x H516 Mount Plate
3 x Self-Tapping Screws (2.9 x 13mm)
3 x Countersunk Bolts (3 x 30mm)
|
General Specifications |
|
|
Type |
Pre-polarized condenser microphone |
|
Polar Pattern |
Cardioid |
|
Audio frequency bandwidth |
60 - 20000 Hz |
|
Equivalent noise level |
31 dB-A |
|
Sensitivity |
5 mV/Pa |
|
Signal to Noise |
63 dB-A |
|
Electrical impedance |
200ohm |
|
Recommended load impedance |
2000ohm |
|
Max. SPL for 1%/3% THD |
130/132 dB SPL |
|
Dimensions |
|
|
Width |
47 mm |
|
Height |
235 mm |
|
Net Weight |
46 g |
|
Cable length |
1.5 m (5 ft.) |
|
Design |
|
|
Body |
metal |
|
Finish |
matte black |
|
Audio Output |
|
|
Type |
Mini XLR |
|
Gender |
Female |
|
Contacts |
3-pin |
|
Powering Interface |
|
|
Voltage |
2 to 12 V |
|
Current |
2 mA |
|
Application |
|
|
Project Studio |
Yes |
|
Live Instrument |
Yes |
|
Instrument |
|
|
Guitar Amps / Bass Amps |
Yes |
|
Piano / Strings |
Yes |
