Item # C414 XLII
LARGE DIAPHRAGM STUDIO MICROPHONE FOR SOLO VOCALS & SOLO INSTRUMENTS
Item # C414 XLII
LARGE DIAPHRAGM STUDIO MICROPHONE FOR SOLO VOCALS & SOLO INSTRUMENTS
- UM: EA
- Estimated Weight: 4.8
- Brand: AKG / HARMAN
The C414 XLII multi-pattern condenser microphone offers a choice of nine polar patterns for the perfect sonic capture for every application. A peak hold LED displays even the shortest overload peaks. For live sound applications and permanent installations, all controls can easily be disabled for trouble-free use.
The C414 XLII version differs from the C414 XLS version in one major respect – the capsule. The C414 XLII's slight presence boost and impressive spatial reproduction are both similar to the legendary AKG C12 microphone from 1953.
Features
Sonic character of the famous AKG C12
Nine selectable polar patterns
Three attenuation levels (-6/-12/-18 dB)
Three switchable different bass-cut filters
Overload warning with audio peak hold LED

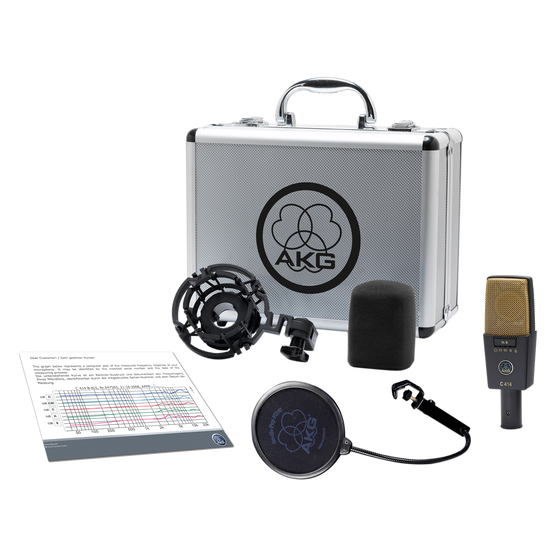

Includes
1 x C414 XLII Microphone
1 x H85 Universal Shock Mount
1 x PF80 Pop Filter
1 x W414 Windscreen C414
1 x Metal Carrying Case
|
General Specifications |
|
|
Polar Patterns |
Cardioid, Figure of eight, Hypercardioid, Omnidirectional, and Wide Cardioid |
|
Audio frequency bandwidth |
20 - 20000 Hz |
|
Equivalent noise level |
6 dB-A |
|
Sensitivity |
23 mV/Pa |
|
Signal to Noise |
88 dB-A |
|
Preattenuation Pad |
-6; -12; -18 dB |
|
Bass cut filter |
160; 80; 40 Hz |
|
Electrical impedance |
200ohm |
|
Recommended load impedance |
2200ohm |
|
Dimensions |
|
|
Length |
38 mm |
|
Width |
50 mm |
|
Height |
160 mm |
|
Net Weight |
300 g |
|
Design |
|
|
Finish |
dark gray/gold |
|
Audio Output |
|
|
Type |
Balanced XLR |
|
Gender |
Male |
|
Contacts |
3-pin |
|
Powering Interface |
|
|
Voltage |
44 to 52 V |
|
Current |
4.5 mA |
|
Application |
|
|
Pro Studio |
Yes |
|
Instrument |
|
|
Vocals |
Yes |
|
Piano / Strings |
Yes |
|
Horns / Woodwinds |
Yes |
Documents
