Item # C411 PP
FOR HARDWIRE APPLICATIONS, WITH STANDARD XLR CONNECTOR FOR PHANTOM POWERING.
Item # C411 PP
FOR HARDWIRE APPLICATIONS, WITH STANDARD XLR CONNECTOR FOR PHANTOM POWERING.
- UM: EA
- Estimated Weight: 3.0
- Brand: AKG / HARMAN

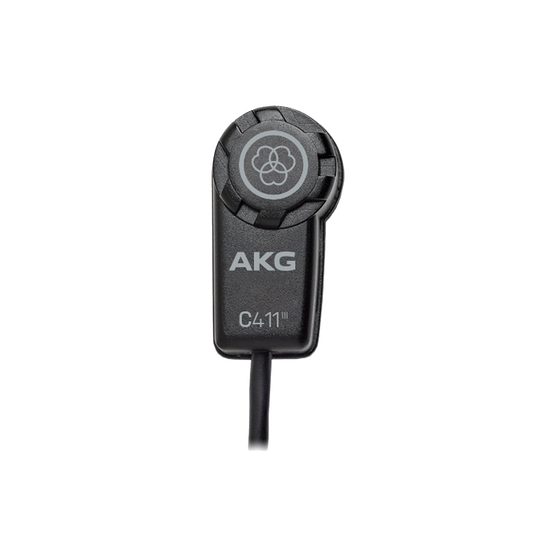

The C411 is a miniature vibration pickup for acoustic guitar, mandolin, violin and most other string instruments. Its integrated condenser capsule will reproduce the sound of the instrument clearly and without coloration. The C411 ultralight pickup (18g/0.6oz) can be easily attached on or near the bridge with the included nonmarking, solvent-free adhesive pad without changing the balance of the instrument. The C411 is available in two versions. The C411 PP features a MPAV standard XLR connector while the C411 L provides a professional three-pin mini XLR connector that fits the body-pack transmitters of all AKG wireless microphone systems.
Features
Condenser transducer in sealed enclosure
Ultralight vibration pickup
Includes
1 x C411 PP Miniature Vibration Pickup
1 x Adhesive Compound
1 x Microphone Bag
|
General Specifications |
|
|
Type |
Pre-polarized condenser transducer |
|
Polar Pattern |
Figure of eight |
|
Audio frequency bandwidth |
10 - 18000 Hz |
|
Sensitivity |
2 mV/Pa |
|
Electrical impedance |
200ohm |
|
Recommended load impedance |
1000ohm |
|
Max. SPL for 1%/3% THD |
96 dB / 103 dB |
|
Current consumption |
approx. 2.2 mA |
|
Dimensions |
|
|
Length |
9.7 mm |
|
Width |
14.2 mm |
|
Height |
26.7 mm |
|
Net Weight |
225 g (8 oz.) |
|
Cable length |
3 m (10 ft.) |
|
Design |
|
|
Body |
plastic |
|
Finish |
matte black |
|
Audio Output |
|
|
Type |
MPAV standard XLR connector |
|
Gender |
Female |
|
Contacts |
3-pin |
|
Powering Interface |
|
|
Voltage |
9 to 52 V |
|
Current |
2 mA |
|
Application |
|
|
Live Instrument |
Yes |
|
Instrument |
|
|
Piano / Strings |
Yes |
