Item # BC3-8

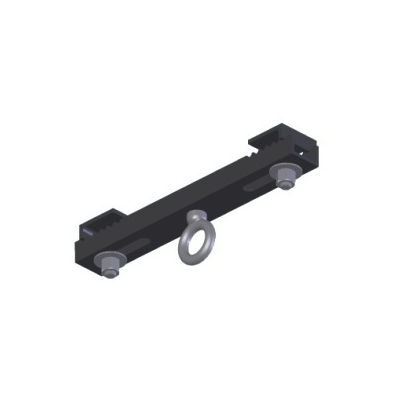

BEAM CLAMP, 3-8", 1 TON W/1/2", SWIVEL EYE
Item # BC3-8
BEAM CLAMP, 3-8", 1 TON W/1/2", SWIVEL EYE
- UM: EA
- Estimated Weight: 8.0
- Brand: ADAPTIVE TECHNOLOGIES
This channel style beam clamp is adjustable and mounts flush underneath the building’s I-Beam’s flanges. It comes equipped with a centrally located rigging point for suspending objects from wire rope, rigging chain, spansets, etc. This beam clamp model provides a fast, easy and safe way to rig direct loads, bridles and hitches from overhead and a hand wrench is all that is required to secure this clamp. The beam flanges must be parallel to the floor to achieve the stated working loads.
Features
Single load-rated center hang point
Provides safe load-rated hang point to 45° off center.
Clamp two models secure to beam flanges ranging from 3” – 8” / 76mm – 203mm
|
Material |
All Steel Components |
|
Width |
(BC3-8) 3” to 8” / 76mm to 203mm |
|
WLL |
2100 lb / 952.544 Kg WLL (VERTICAL) |
|
Finish |
Powder Coat |
|
Color |
Black |
|
Design Factor |
4:1 |
|
45 DEG. WL |
1680 lb / 762.0352 Kg |
