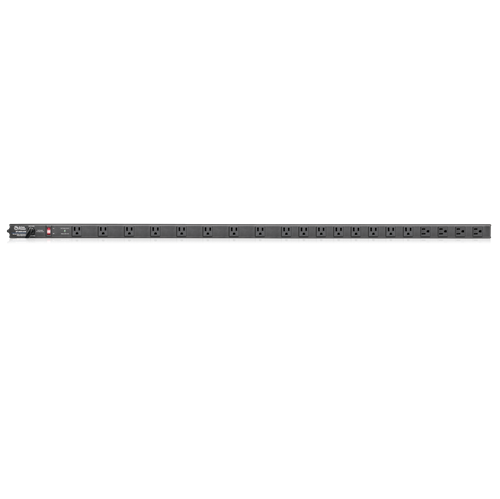

AP-4820-20S | 20A 48" 20 OUTLET VERTICAL POWER STRIP
Item # AP-4820-20S
20A 48" 20 OUTLET VERTICAL POWER STRIP
Click image to enlarge
The Atlas Power Vertical Power Strips offer complete power management, multiple outlet spacing and outlet orientations, and RFI filtering along with spike/surge protection to make them the most compact, effective power management protection systems on the market today. The AP-4820-20S is 48" rack mountable and features 20A, 2500W power capability.
Features:
- 20 Available 20A Outlets
- Slimline Designs, 1.62"W x 1.25"D
- Two AC Outlet Orientations: "In Line" and "90 Degree to Chassis"
- Lighted Main Power Switch
- Circuit Breaker Protection
- Three-Way Surge Suppression MOV Protection: H-N, H-G, N-G
- RFI Filtering
- AC Protect Indicator
- UL, cUL Listed
- Also Available in 72", 30 Outlet (AP-7230-20S) and 24", 10 Outlet (AP-2410-20S) Models
| Outlets | NEMA 5-20R, Qty. 20 |
|---|---|
| Power Cord | 9'' (2.74m), 12-gauge, AC Plug NEMA 5-20P |
| Load Rating | 2500W |
| MAX Current Protection | 20A AC Mains Breaker |
| Voltage Protection Rating | L-N: 500V, L-G: 500V, N-G: 500V / 3kA, 8/20µs |
| Energy Rating | 450 Joules, 8/20µs |
| Power Consumption | .5W |
| Height | 1.25" (31.75mm) |
| Length | 48" (1219.20mm) |
| Width | 1.62" (41.10mm) |
| Weight | 3.8 lbs (1.74kg) |
| Warranty Period | 12 months from date of purchase |
×
