Item # ALF-SUK2GEN2
HDMI 2.0 SPLITTER WITH ONE HDMI INPUT AND TWO HDMI OUTPUTS, FOR HDR, SUPPORTS 4K/UHD VIDEO
Item # ALF-SUK2GEN2
HDMI 2.0 SPLITTER WITH ONE HDMI INPUT AND TWO HDMI OUTPUTS, FOR HDR, SUPPORTS 4K/UHD VIDEO
- UM: EA
- Brand: ALFATRON

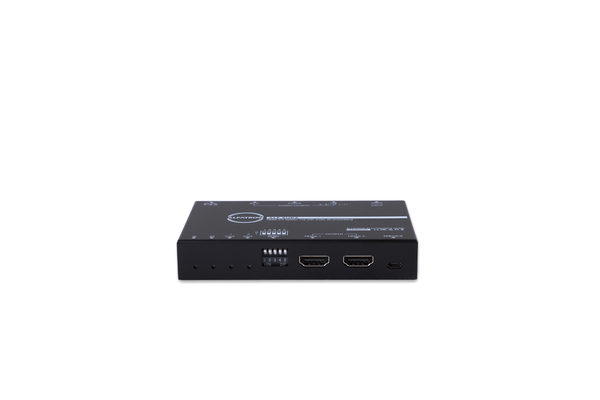

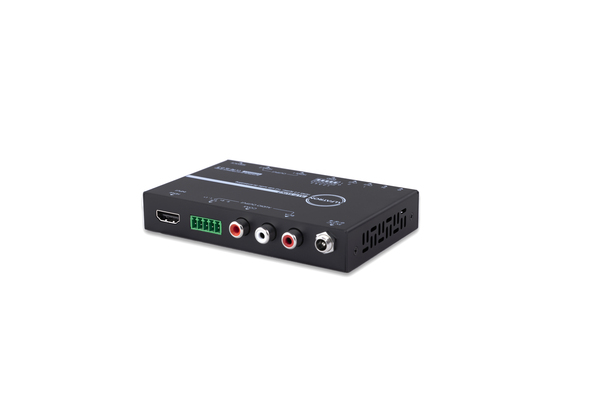

The ALF-SUK2 is an HDMI 2.0 splitter with one HDMI input and two HDMI outputs, for high dynamic range (HDR) formats. It is HDCP 2.3 compliant, supports 4K / UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. This splitter includes de-embedded audio, scaling, EDID management, and front panel LED indicators for power and signal status.
Features
4K / UHD capability @ 60 Hz with 4:4:4 chroma sampling
Compatible with 4K HDR10 @ 60 Hz, HLG (Hybrid Log-Gamma).
HDCP 2.3, and is backwards compatible
Smart EDID management via 5 pin DIP switcher, with the source through a display’s EDID or internally stored EDID
De-embedded audio: 1 x balanced, 1 x Optical, 1 x RCA
Automatically downscaling from 4k to 1080p for legacy displays
Device can be updated in the field via USB port
|
Video |
|
|
I/O |
One HDMI in, two HDMI out |
|
Connector |
Type-A female HDMI |
|
HDMI Resolution |
Up to 4Kx2K@60Hz 4:4:4 8bit |
|
HDMI Standard |
2.0 |
|
HDR Formats |
4:2:0, 4:2:2, 4:4:4 (10 and 12 Deep Colour), HDR10, HDR10+, HLG |
|
Deep Colour |
Up to 16 Bit (1080), up to 12 Bit (4K) |
|
HDCP Version |
2.3, 2.2, 1.4 compliant |
|
CEC |
Supported |
|
Audio |
|
|
HDMI Audio |
PCM 2.0 CH, LPCM5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio, DTS-X, Dolby Atmos. |
|
COAX |
PCM 2.0 CH, LPCM5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio, DTS-X, Dolby Atmos. |
|
Analog (Balanced) |
PCM 2.0 CH |
|
Analog ( on RCA) |
PCM 2.0 CH |
|
Control |
|
|
Control Part |
(1) EDID 5-pin DIP switch, (1) Micro-USB port |
|
General |
|
|
Bandwidth |
18Gbps |
|
HDMI 2.0 Cable Length |
4K@60Hz 4:4:4 = 5m, 4K@60Hz 4:2:0 = 15m, 1080P = 20m |
|
Operation Temperature |
-10°C ~ +55°C |
|
Storage Temperature |
-25°C ~ +70°C |
|
Relative Humility |
10%-90% |
|
Power Supply |
Input:100V~240V AC; Output: 5V DC 1A |
|
Power Consumption |
2W (Max) |
|
Dimension (W*H*D) |
120 mm x 21mm x 75mm |
