Item # AL-SU15KA

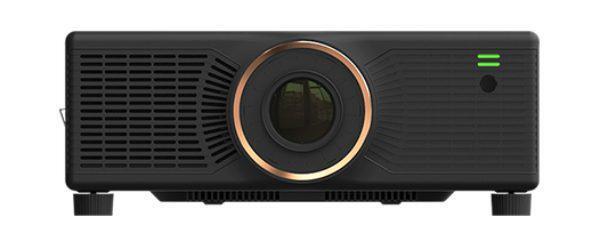

LASER PROJECTOR, 15,000 LUMENS, 1920*1200, 100,000:1, BLACK CHASSIS, 63LBS (INCLUDES STANDARD LENS)
Item # AL-SU15KA
LASER PROJECTOR, 15,000 LUMENS, 1920*1200, 100,000:1, BLACK CHASSIS, 63LBS (INCLUDES STANDARD LENS)
- UM: EA
- Estimated Weight: 65.0
- Brand: APPOTRONICS PROJECTORS
Large venue projector
RGB – Primary-colors
Red Ratio 16%-18%. Higher Saturation.
Coverage Beyond Rec. 709. Precise Color Rendition. Higher Stability.
Optional Lens
Light Weight Design
Multiple Color Correction Technology Provides High Uniformity in Edge Blending
Built-in Geometric Correction and Wrapping
All-sealed light engine provides complete dust free, filter free structure
All-new patented inner loop color wheel cooling system.
Powerful duo liquid cooling system provides stability even at 104°.
20,000h Proven Lifespan
|
Display Technology |
DLP x1, DLP Projection System |
|
Panel Size |
0,67’’ DMD |
|
Resolution |
1,920 x 1,200 WUXGA |
|
Brightness Output |
15,000 (Center) |
|
Light Source Type |
ALPD Laser (Laser type: Class 1) |
|
Life Source Lifetime |
20,000h (Standard Mode) |
|
Contrast |
100,000 : 1 |
|
Uniformity |
90% |
|
Display Gamut |
REC.709 |
|
Edge Blending |
Horizontal & vertical edge blending |
|
Standard Lens |
1.23-1.97:1 |
|
Optional Lenses |
0.62:1, 0.8:1, 1.62-2.96:1, 2.86-4.85:1 4.68-7.96:1 |
|
Screen Size |
40’’ ~ 600’’ |
|
Keystone |
Vertical/Horizontal ±20° |
|
Optical Axis Shift |
Vertical ±100%, Horizontal ±40%, powered |
|
Input Resolution |
1,920 x 1,200 pixels (higher resolution will be scaled to 1,920 x 1,200 pixels) |
|
I/O |
DVI x 1 / HDMI x 1 / DP x 1 / VGA x 1 / BNC x 5 / SDI x 1 / 3D SYNC x 2 (in/out) / Wired Remote M3 x 2 (in/out) / HDbaseT X 1 (compatible with RJ45) / RS232 x 2 (in/out) / USB x 1 / IR 3D OUT x 1 |
|
Power Supply |
100-240V AC, 50/60Hz |
|
Standard Power Consumption |
1400W |
|
Stand-by Power Consumption |
Power saving 0.5W / Stand by 7W |
|
Orientation |
360° |
|
Noise |
35dB (ECO)/39dB (Standard) |
|
Structure Measurements |
24.4’’ x 21’’ x 7’’ |
|
Structure Weight |
63.7 lbs |
|
Structure Temperature |
32°F~104°F (95°F~104°F Eco Mode) |
|
Structure Humidity |
20%~80% (no condensation) |
|
Accessories |
Power cable x 1, wireless/wired remote control unit, remote control, software CD-ROM |
