Item # AL-MU525A
1-CHIP DLP, POWERED INTERCHANGEABLE LENS, 3D SYNC IN/OUT, GEOMETRIC KEYSTONE
Item # AL-MU525A
1-CHIP DLP, POWERED INTERCHANGEABLE LENS, 3D SYNC IN/OUT, GEOMETRIC KEYSTONE
- UM: EA
- Estimated Weight: 20.0
- Brand: APPOTRONICS PROJECTORS

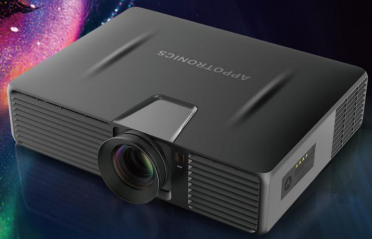

Compact lightweight fixed-install projector
Vivid Color, High Resolution
I Precise Rec.709 color gamut. Perfect color reproduction.
WUXGA/4K resolution.
19% red ratio.
Outstanding System Performance
Built-in Android OS.
3D-Sync connection to support infrared
3D and DLP-link 3D.
Rich I/0.
Electric Shutter.
Easy to Install
Compact body with high output: thickness <4” and weighs only 20lbs.
360° installation, easy to install.
Built-in wrapping & blending functions
RGBCMYW 7-axiel color correction provides perfect uniformity.
Multiple powered interchangeable lenses with wide range lens shift upto 100%.
High Reliability
Full-seal engine.
Over 20000H engine life span.
|
Display Technology |
DLP x 1, DLP Projection System |
|
Panel Size |
0.48” DMD |
|
Resolution |
1,920×1,200 WUXGA |
|
Brightness Output |
5,200 Im |
|
Light Source Type |
ALPD Laser (Laser type: Class 1) |
|
Life Source Lifetime |
20,000h (Standard Mode) |
|
Contrast 2 |
100,000 : 1 |
|
Uniformity |
90% |
|
Display Gamut |
REC.709 |
|
Standard Lens |
1.0-1.6:1 |
|
Optional Lenses |
0.7-0.9:1, 1.52-2.45:1 |
|
Screen Size |
80” ~ 300’’ |
|
Geometric Correction |
Keystone: V: ±35°, H: ±35°, 4-Corner Keystone |
|
Optical Axis Shift |
Vertical: ±80%, Horizontal: ±40%, Powered |
|
I/O Video Connection |
HDMIx2, VGAx2 |
|
I/O Audio Connection |
Audio In x 1 , Audio Out x 1 |
|
I/O Control Connection |
LAN(RJ45); RS232(DB9)x1; 3D IR OUTx1; USB-Bx1 |
|
Power Supply |
100-240V AC, 50/60Hz |
|
Power Consumption |
Standard < 500W; Stand-by <0.5W |
|
Orientation |
360° |
|
Noise |
36db (Standard) |
|
Structure Measurements |
17.2” x 13.1” x 4.25” |
|
Structure Weight |
<19.4 lbs |
|
Structure Temperature |
32°F~104°F (95°F~104°F Eco Mode) |
|
Structure Humidity |
20%~80% (no condensation) |
