Item # AL-FU825A

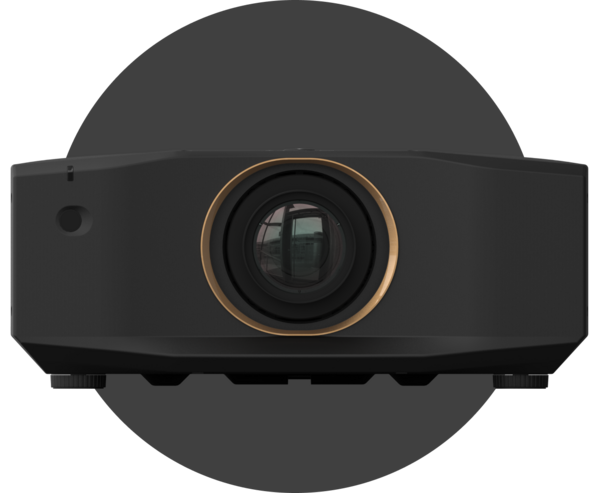

8200 LUMEN LASER PROJECTOR, 1920X1200, 100,000:1, SHIP WITH THE AL-120MA 1.23-2.22 STD ZOOM LENS
Item # AL-FU825A
8200 LUMEN LASER PROJECTOR, 1920X1200, 100,000:1, SHIP WITH THE AL-120MA 1.23-2.22 STD ZOOM LENS
- UM: EA
- Estimated Weight: 38.0
- Brand: APPOTRONICS PROJECTORS
High performance fixed-install projector
Features
Dynamic Light Control Enables 100,000:1 Contrast
Coverage Beyond Rec.709. Precise Color Rendition. Higher Stability
Red Color Ratio Exceeds 10%
Higher color brightness, better picture performance on the 1 DLP platform.
Optional Lenses
Wide-range Powered Lens Shift
Built-in Geometric Correction and Edgeblending
All Products Support 3D-sync: 3D-sync to support infrared 3D and DLP-Link 3D.
Light Weight Design
Color/Brightness Uniformity Across Multiple Screens
Built-in Geometric Correction and Wrapping
360° Installation: Projector can be oriented in any position, 360° in both horizontal and vertical axes.
Rich 1/0 with HDBaseT as Standard
All-sealed light engine,dust-free structure.
ALPD Laser is an environmentally friendly, mercury-free technology.
Patented Inner Loop Color Wheel Cooling System
|
Display Technology |
DLPx1, DLP Projection System |
|
Resolution |
1,920 x 1,200 WUXGA |
|
Brightness Output |
8,200 Im |
|
Light Source Type |
ALPD Laser (Laser type: Class 1) |
|
Life Source Lifetime |
20,000h (Standard Mode) |
|
Contrast |
100,000 : 1 |
|
Uniformity |
90% |
|
Display Gamut |
REC.709 |
|
Edge Blending |
Horitonal & Vertical Edge Blending |
|
Standard Lens |
1.23-1.97:1 |
|
Optional Lenses |
0.62:1, 0.8:1, 1.62-2.96:1, 2.86-4.85:1 4.68-7.96:1 |
|
Screen Size |
40’’ ~ 300’’ |
|
Keystone |
Vertical/Horizontal ±20° |
|
Optical Axis Shift |
Vertical ±100%, Horizontal ±40%, powered |
|
Input Resolution |
1,920 x 1,200 pixels (higher resolution will be scaled to 1,920 x 1,200 pixels) |
|
I/O |
DVI x 1 / HDMI x 1 / DP x 1 / VGA x 1 / BNC x 5 / SDI x 1 / 3D SYNC x 2 (in/out) / Wired Remote M3 x 2 (in/out) / HDbaseT X 1 (compatible with RJ45) / RS232 x 2 (in/out) / USB x 1 / IR 3D OUT x 1 |
|
Power Supply |
100-240V AC, 50/60Hz |
|
Standard Power Consumption |
650W |
|
Stand-by Power Consumption |
Power saving 0.5W / Stand by 7W |
|
Orientation |
360° |
|
Noise |
35dB (ECO)/39dB (Standard) |
|
Structure Measurements |
17.9” x 17.9” x 7” |
|
Structure Weight |
37 lbs |
|
Structure Temperature |
32°F~104°F (95°F~104°F Eco Mode) |
|
Structure Humidity |
20%~80% (no condensation) |
|
Accessories |
Power cable x 1, wireless/wired remote control unit, remote control, software CD-ROM |
