Item # AL-DH750A

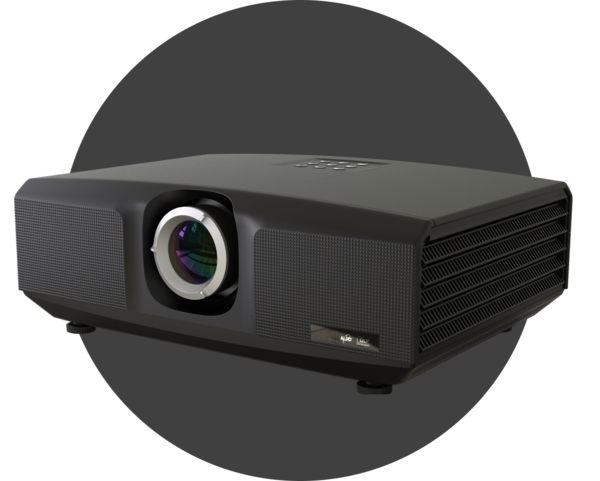

LASER PROJECTOR -7500 LUMENS, 1920X1080, 35000:1, SHIPS W/AL-DL120MA 1.23-1.97:1 STD ZOOM LENS/BLACK
Item # AL-DH750A
LASER PROJECTOR -7500 LUMENS, 1920X1080, 35000:1, SHIPS W/AL-DL120MA 1.23-1.97:1 STD ZOOM LENS/BLACK
- UM: EA
- Estimated Weight: 38.0
- Brand: APPOTRONICS PROJECTORS
The All/New D Series Laser Installation Projector
Appotronics ALPD technology evolved into 4th generation with over 1000 patents awarded worldwide; The products using ALPD technology, has been widely-adopted in digital cinemas, large venues and installations, education and other markets.
The D series adopt RGBY 4-segment color wheel. The Y (yellow) segment uplifts the brightness of the machine while bringing much better color and higher color brightness then traditional RGBW color wheels.
ALPD is a solid state laser light source that can reach full power virtually instantly when turned on. No waiting for warm-up, as is the case with traditional lamp-based projectors. Power off is also instantaneous, with no need to wait for light engine to cool. Recovery from event, operator error, etc., is quick and carefree.
Features
All-sealed light engine provides complete dust free, filter free structure.
All-new patented inner loop color wheel cooling system.
20.000 hours proven life span: ALPD° Is the only laser technology proved under nian intensity environments including digital cinemas and control rooms.
|
Display Technology |
DLP x 1, DLP Projection System |
|
Chip Size |
0.65” DMD |
|
Resolution |
1,920×1,080, 1080P |
|
Brightness Output 1 |
7,500 Im |
|
Type of Light Source |
ALPD Laser (Laser type: Class 1) |
|
Life Source Lifetime 6 |
20,000h (Standard Mode) |
|
Contrast 2 |
100,000 : 1 |
|
Uniformity |
90% |
|
Display Gamut |
REC.709 |
|
Standard Lens |
1.23-1.97:1 |
|
Optional Lenses |
0.62:1, 0.8:1 |
|
Screen Size |
60” to 300” |
|
Keystone |
Vertical/Horizontal ±20°, 4-Corner Keystone |
|
Lens Shift |
Vertical ±100%, Horizontal ±40%, powered |
|
Input Resolution |
1,920 x 1,080 |
|
I/O |
DVI x 1 / HDMI x 2/ VGA x 1/ RS232 x 1/ Mini-jack 3.5mm x 1/ RJ45 x 1/ USB x 1/ IR3D out x 1 |
|
Power Supply |
100-240V AC, 50/60HZ |
|
Standard Power Consumption |
< 550W |
|
Stand-by Power Consumption |
< 0.5W |
|
Orientation |
360° |
|
Noise |
35dB (Normal) |
|
Structure Measurements 3 |
19.3” x 13.9” x 6.3” |
|
Structure Weight 4 |
< 28.7 Ibs |
|
Structure Temperature 5 |
320F~ 104°F (95°F ~ 104°F ECO) |
|
Structure Humidity |
20%~80% ; No Condensation |
|
Accessories |
Power cable x1, wireless /wired remote control unit, remote control, software CD-ROM |
