Item # AKG AB4000EW
HIGH-PERFORMANCE ANTENNA BOOSTER TO COMPENSATE SIGNAL LOSS ON LONG ANTENNA CABLES
Item # AKG AB4000EW
HIGH-PERFORMANCE ANTENNA BOOSTER TO COMPENSATE SIGNAL LOSS ON LONG ANTENNA CABLES
- UM: EA
- Estimated Weight: 1.0
- Brand: AKG / HARMAN
AB4000 EW is a high-performance antenna booster to compensate signal loss on long antenna cables. One AB4000 EW can compensate 3.5 to 17.5 dB of cable attenuation. Up to two boosters can be cascaded in case of extremely long cable runs.

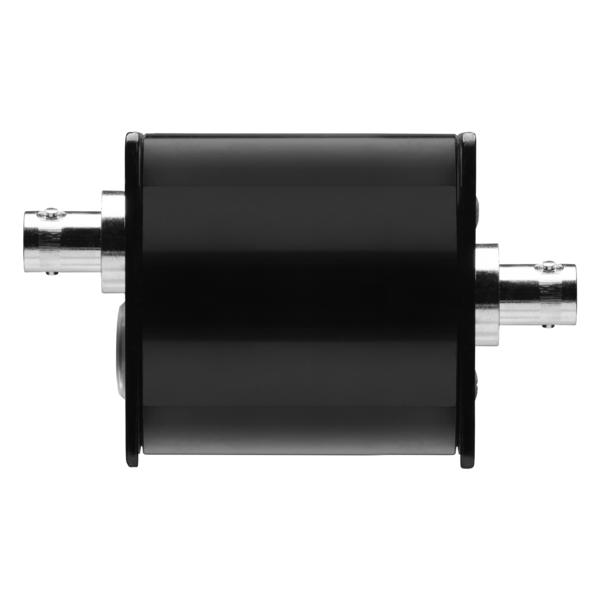

The AB4000 EW comes in a rugged, waterproof metal housing and features an in-line power LED display and cable length adjustment switches. It works with all powered and passive AKG antennas, RA4000 B/EW, RA4000 EW, SRA2 B/EW and SRA2 EW, and operates in a frequency range from 470MHz to 952MHz.
Features
17 dB amplification
Remote powering via the antenna cable
Cable length adjustment switch
Water-resistant construction
|
General Specifications |
|
|
Switching bandwidth (from/to) |
470 to 952 MHz |
|
Operating temperature range |
-10 to 50 Celsius |
|
Dimensions |
|
|
Length |
110 mm |
|
Height |
50 mm |
|
Width |
50 mm |
|
Net Weight |
150 g |
|
Antenna Input |
|
|
Amount |
1 |
|
Type |
BNC |
|
Gender |
Female |
|
Note |
RF input (50ohm) |
|
Recommended load impedance |
50ohm |
|
Antenna Output |
|
|
Amount |
1 |
|
Type |
BNC |
|
Gender |
Female |
|
Note |
RF output (50ohm) |
|
Recommended load impedance |
50ohm |
|
Design |
|
|
Finish |
black |
|
Body |
metal |
