Item # 80-0191
xIO Bluetooth RCA 3.5 Black:Dante I/O endpoint, BT media in, BT phone I/O, stereo RCA & 3.5 I/O
Item # 80-0191
xIO Bluetooth RCA 3.5 Black:Dante I/O endpoint, BT media in, BT phone I/O, stereo RCA & 3.5 I/O
- UM: EA
- Estimated Weight: 2.0
- Brand: SYMETRIX
Symetrix Dante I/O endpoint, Bluetooth media in, Bluetooth phone I/O, stereo RCA I/O, stereo 3.5mm I/O, 4x4 Dante, PoE, Decora double-gang, black
xIO Bluetooth RCA-3.5
- Dual gang Bluetooth 5.0, stereo RCA, and stereo 3.5mm PoE Dante endpoint
- Stereo RCA and 3.5mm unbalanced analog inputs with flexible routing and summing
- Simultaneous and independent stereo RCA and 3.5 mm unbalanced analog outputs
- 4 channels of Dante IO
- Selectable Bluetooth modes: Media only, Phone only, Both
- PIN code Bluetooth security
- Selectable single or multiple memorized Bluetooth pairings
- LED blackout mode
- Powerful configuration from Composer with flexible control from Symetrix remotes, SymVue touchscreens panels, or user supplied devices
- Perfect for Conferencing, Hospitality, Education, House of Worship, or Residential use

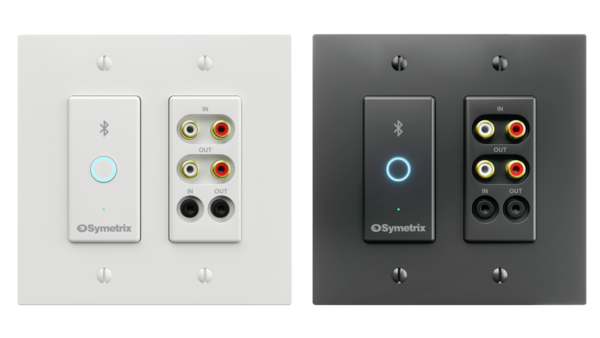

- Available with black or white finishes
- Supports standard dual gang Decora faceplates
|
Specification |
Detail |
|
Power |
PoE, IEEE 802.3af Class 0 compliant, 15.4 Watts maximum |
|
Front Panel Control and Monitoring |
Button: Pairing control; Blue LED: Pairing status; Green LED: Device status |
|
Compatibility |
Symetrix Composer 8.1 or later |
|
Ethernet Cable |
Standard CAT5e or CAT6. Maximum device to device length: 100 m |
|
Maximum Devices per System |
128 units per Site File |
Inputs and Outputs
|
Specification |
Detail |
|
RCA/3.5mm Input Maximum Level |
+12 dBu, +10 dBV |
|
RCA/3.5mm Input Frequency Response |
20Hz – 20kHz, ± 0.5 dB |
|
RCA/3.5mm Input THD + Noise |
< 0.005% @ 0 dB gain, 1 kHz @ +4 dBu input level |
|
RCA/3.5mm Input Crosstalk |
< -93 dB @ 1 kHz |
|
RCA/3.5mm Input SNR |
> 96 dB @ 1 kHz |
|
RCA/3.5mm Output Maximum Level |
+12 dBu, +10 dBV |
|
RCA/3.5mm Output Frequency Response |
20Hz – 20kHz, ± 0.1 dB |
|
RCA/3.5mm Output THD + Noise |
<0.005% @ 0 dB gain, 1 kHz @ +4 dBu output level |
|
RCA/3.5mm Output Crosstalk |
< -99 dB @ 1 kHz |
|
RCA/3.5mm Output SNR |
> 103 @ 1 kHz |
Mechanical Specifications
|
Specification |
Detail |
|
Environmental |
Ambient operating temperature: 0° – 40° C (32° – 104° F). Avoid prolonged exposure to direct sunlight or strong ultraviolet light. |
|
Space Required |
Double-gang US wall box. Depth does not include connector allowance. Allow at least 3 inches additional clearance for rear panel connections. Additional depth may be required depending upon your specific wiring and connections. |
|
Dimensions |
3.612 inches (91.74 mm) x 4.205 inches (108.80 mm) x 2.063 inches (52.40 mm) |
|
Box Contents |
xIO Bluetooth RCA-3.5; Dual gang Decora® wall plate (black or white); Four #6-32 x 5/8” Phillips countersunk screws; Four #6-32 x 1/4” slotted oval head screws (black or white); Quick Start Guide |
|
Shipping Weight |
1.10 lb (0.5 kg) |
|
Certifications and Compliance |
UL/CSA/EN 62368-1; FCC 15.107:2021; FCC 15.109:2021; ICES003:2020; RoHS; EN 300 328 V2.2.2:2019; EN 301 489-1 v2.2.3:2019; EN 301 489-17 v3.2.4:2020; EN 55035; EN 55032 |
|
Form Factor |
Double-gang US wall mount |
|
Product Weight |
0.65 lb (0.29 kg) |
