Item # ZX1-90

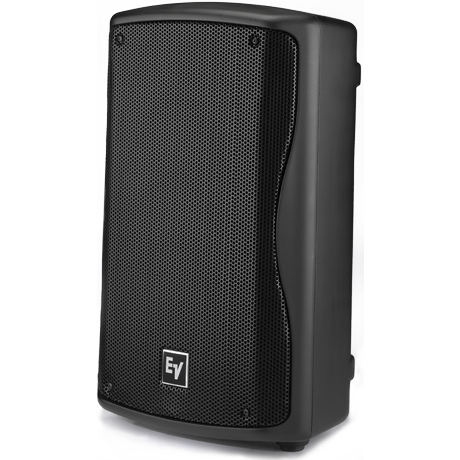

8" 2-WAY PASSIVE SPEAKER 200W WITH EV DH2005 HI-FREQ COMPRESSION DRIVER,2 NL4 CONNECTORS,BLACK
Item # ZX1-90
8" 2-WAY PASSIVE SPEAKER 200W WITH EV DH2005 HI-FREQ COMPRESSION DRIVER,2 NL4 CONNECTORS,BLACK
- UM: EA
- Estimated Weight: 23.0
- Brand: ELECTRO-VOICE / BOSCH
The Electro-Voice ZX1 is the new standard of no compromise audio performance and versatility for compact sound reinforcement.
FEATURES
- Smooth, wide frequency response
- Ideal for mains, fills, or monitors
- Velocity-compensated port for exceptional LF
- Long-excursion weather-treated EV8L woofer
- 1.25-inch DH2005 titanium HF compression driver
- Rotatable 90º x 50º horn for flexible coverage
- Passive crossover with full-band overload protection
- High sensitivity, 123 dB maximum SPL
- Power handling: 200 W continuous, 800 W peak
- High-impact polypropylene enclosure
- Compact monitor-friendly wedge shape
- Integrated pole mount adapter and pocket handle
- Metric mounting inserts (4)
- Available in black or white
|
Freq. Response (Half space measurement) (-3 dB) |
60 Hz - 20 kHz |
|
Freq. Range (Half space measurement) (-10 dB) |
48 Hz - 20 kHz |
|
Rec. Hipass Frequency |
40 Hz |
|
Axial Sensitivity (Half space measurement) |
92 dB (1W/1m) |
|
Max Calculated SPL |
121 dB |
|
Horizontal Coverage |
100° |
|
Vertical Coverage |
100° |
|
Rated System Power |
200W Cont. 2, 400W Prog., 800W Peak |
|
LF Transducer |
EV8L, 8 in (203mm) Driver |
|
HF Transducer |
DH2005, 1 in. (25.4mm) Exit Compression Driver |
|
Crossover Frequency |
1.7 kHz |
|
Nominal Impedance |
8 Ohms |
|
Minimum Impedance |
6 Ohms |
|
Connectors |
Neutrik Speakon NL4 |
|
Enclosure Material |
High Impact Polymer |
|
Grille |
Polyester Powder Coated, 18GA Galvanized Steel |
|
Dim (H x W x D) |
457mm x 282mm x 264mm (17.98" x 11.12" x 10.38") |
|
Net Weight |
8.4 kg (18.5 lbs) |
|
Shipping Weight |
10.2 kg (22.5 lbs) |
¹ Half Space Measurement.
