Item # WPD-MIX42RT

WALL PLATE INPUT SELECT SWITCH, VOLUME CONTROL 10K POT WITH SYSTEM INDICATOR

  • MAP: $76.99 / EA
  • List Price: $93.99 / EA
  • Log in to see if custom discounts apply
    WPD-MIX42RT WALL PLATE INPUT SELECT SWITCH, VOLUME CONTROL 10K POT WITH SYSTEM INDICATOR
    WPD-MIX42RT WALL PLATE INPUT SELECT SWITCH, VOLUME CONTROL 10K POT WITH SYSTEM INDICATOR
    Click image to enlarge
    WPD-MIX42RT WALL PLATE INPUT SELECT SWITCH, VOLUME CONTROL 10K POT WITH SYSTEM INDICATOR
    WPD-MIX42RT WALL PLATE INPUT SELECT SWITCH, VOLUME CONTROL 10K POT WITH SYSTEM INDICATOR

    Item # WPD-MIX42RT

    WALL PLATE INPUT SELECT SWITCH, VOLUME CONTROL 10K POT WITH SYSTEM INDICATOR

    • UM: EA
    • Estimated Weight: 0.8
    • Brand: ATLAS IED

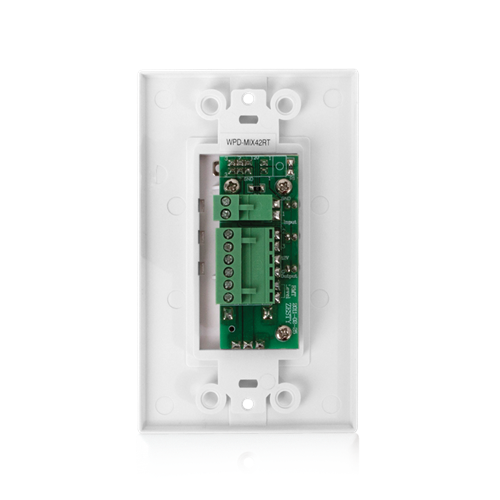

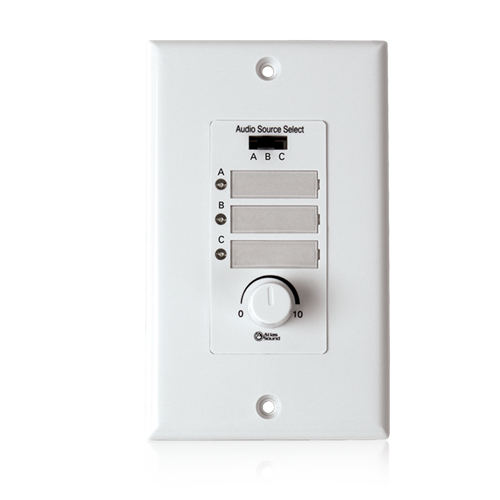

    The WPD-MIX42RT is a decor style wall plate that is designed for remote activation of the TSD-MIX42RT mic/line mixer.   The WPD-MIX42RT features an audio source slide selector as well as a source volume control.  The unit includes an LED indicator to indicate which source is selected and if it is active.  The unit fits in a single gang electrical outlet and uses an 8-conductor interface connection that includes a single 4 position removable Phoenix connector and dual 2 position Phoenix style connectors.  When connected to the TSD-MIX42RT and the Juke Box Override, any page made through the system will override the selected source so that the page can be heard clearly.

    Features:

    • Designed for Remote Activation of Atlas TSD-MIX42RT
    • Input Select Slide Switch
    • Level Control Via On Board 10kΩ Potentiometer
    • System Status Indicator (Red)
    • 8-Conductor Interface Connection
    • Label Guard
    Height 4.5" (114mm)
    Width 2.5" (63mm)
    Depth 0.24" (6.4mm)
    Warranty Period 60 months from date of purchase
