Item # VX-300LO
PROVIDES A LINE LEVEL AUDIO OUTPUT AND CAN BE USED INSTEAD OF AN AMPLIFIER MODULE
Item # VX-300LO
PROVIDES A LINE LEVEL AUDIO OUTPUT AND CAN BE USED INSTEAD OF AN AMPLIFIER MODULE
- UM: EA
- Brand: TOA ELECTRONICS

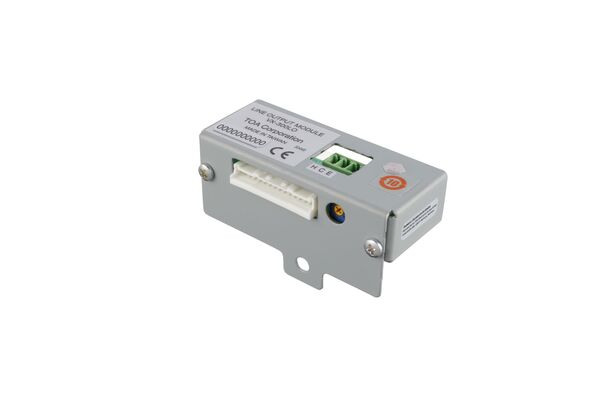

The VX-300LO provides a line level audio output and can be used instead of an amplifier module.
Features
Line level output module
Use of active loudspeakers
Recording
Amplifier for non-emergency applications, e.g. for subwoofers
To be installed instead of ampilifier module
Transformer-balanced
Volume control
|
Power source |
Supplied from VX-3000 frame |
|
Current consumption (value) |
2 mA |
|
Current consumption |
2 mA |
|
Frequency response |
40 Hz - 20 kHz (±1 dB) |
|
Audio output |
Transformer balanced, 3-pin removable screw terminal |
|
Operating humidity |
90% RH or less, no condensation |
|
Operating temperature |
0°C - +40°C |
|
Finish |
Steel, surface-treated |
|
Dimensions |
76 x 39 x 33.2 mm (W x H x D) |
|
Weight |
56 g |
