Item # VTD1-16

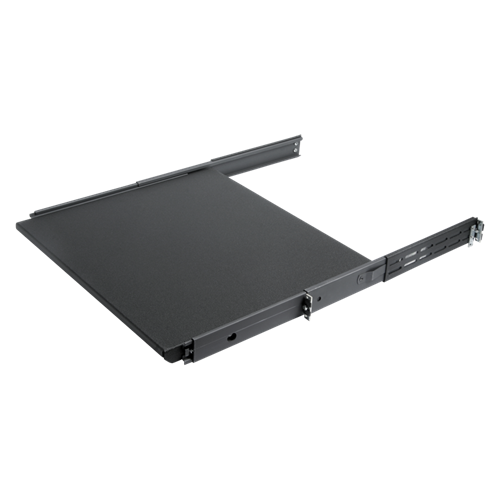

SLIDING SHELF / TRAY FOR CABINETS WITH FRONT & REAR MOUNTING RAILS - SUPPORTS UP TO 85 LBS (38.56KG)
Item # VTD1-16
SLIDING SHELF / TRAY FOR CABINETS WITH FRONT & REAR MOUNTING RAILS - SUPPORTS UP TO 85 LBS (38.56KG)
- UM: EA
- Estimated Weight: 9.0
- Brand: ATLAS IED
Versatile shelf can be used upside-down as a tray with a protective lip or right-side up
as a shelf. Unit provides easy access to 16 3/4" wide (max.) keyboards, video tape recorders, and
control equipment. Solid bearing slides extend 17" outside of cabinet rails and include lock-out
protection. It mounts 19" W cabinets that are 18 1/2" to 25 1/2" deep which are equipped with front
and rear mounting rails. The 16-gauge CRS assembly is finished in black epoxy. It supports up to
85 lbs. (38.56kg) and includes necessary hardware.
Features:
- Perfect for Systems that Require a Computer to Be Present for Set-up
- Requires Rear Rack Rails to Be Installed in Rack for Installation
- Sliding Shelf/Tray Worksurface
| Rack Units | 1 |
|---|---|
| Color | Ebony Black |
| Height | 1 3/4" (4.445 cm) |
| Width | 16 3/4" (42.55 cm) |
| Shipping Weight | 11.00 lbs (4.99 kgs) |
| Safety Listed | 1678 |
| Warranty Period | 60 months from date of purchase |
