VRX918S | 18" COMPACT, FLYING SUBWOOFER; 2268H DIFFERENTIAL DRIVE LF; INTEGRAL FLYING HARDWARE COMPATIBLE
Item # VRX918S
18" COMPACT, FLYING SUBWOOFER; 2268H DIFFERENTIAL DRIVE LF; INTEGRAL FLYING HARDWARE COMPATIBLE
Click image to enlarge

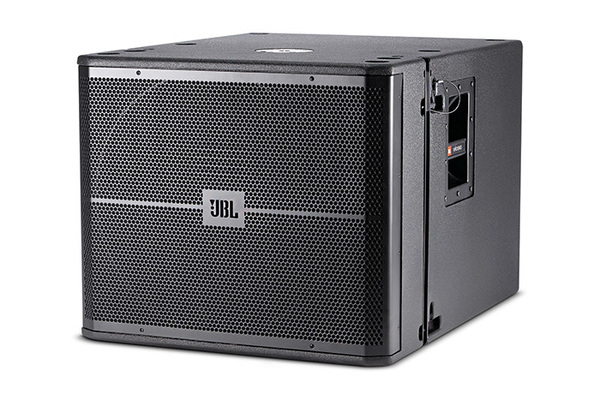

The VRX918S is an 18-inch subwoofer designed for suspension mounting. It features a 2268H neodymium magnet and an 18-inch woofer utilizing a patented Differential Drive technology. The enclosure is front-loaded and vented to optimize airflow and acoustic performance.
Features:
- Integral rigging hardware for simple connection of VRX932LA line-arrays and optional array frame
- 18 inch woofer with 2268H Differential Drive for extended low-frequency output
- Large port area for reduced distortion
- 20 mm threaded pole socket for secure satellite speaker mounting
| Power Rating | 800 W / 1600 W / 3200 W |
|---|---|
| Frequency Range | 31 Hz – 220 Hz |
| Recommended Crossover Frequencies | 80 Hz, 24 dB/oct HPF and LPF |
| System Maximum SPL | 130 dB peak |
| System Sensitivity | 95 dB SPL (1W @ 1m) |
| LF Driver | 1 x JBL 2268H 18 in Differential Drive woofer |
| Nominal Impedance | 8ohms |
| powered Tunings | Available at www.jblpro.com |
| Enclosure | 18 mm, 13-ply birch plywood |
| Inputs | 2 x Neutrik Speakon NL-4 |
