Item # VRX915M
15" 2-WAY DEDICATED FLOOR MONITOR SYSTEM WITH AN 800W 2265H DIFFERENTIAL DRIVE LF; 2452H,
Click image to enlarge
Item # VRX915M
15" 2-WAY DEDICATED FLOOR MONITOR SYSTEM WITH AN 800W 2265H DIFFERENTIAL DRIVE LF; 2452H,
- UM: EA
- Estimated Weight: 61.5
- Brand: JBL / HARMAN

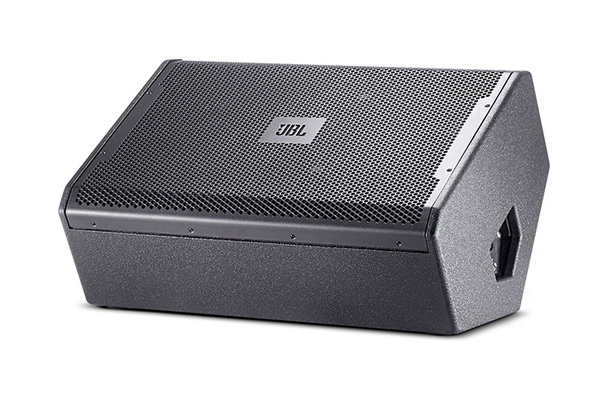

The product is a 15-inch two-way stage monitor designed for audio amplification and sound reinforcement. It features a two-way speaker configuration, typically including a woofer and a tweeter, to cover a broad frequency range suitable for stage monitoring applications.
- Compact low-profile design
- 50° x 90° nominal coverage
- Bi-amplified or passive operation
- Differential Drive® woofer with neodymium magnet
- 4" voice coil compression driver with neodymium magnet
| Power Rating | 800 W / 1600 W / 3200 W |
|---|---|
| Frequency Range (-10dB) | 60 Hz - 20 kHz |
| Coverage Pattern (-6 dB) | 50° x 90° nominal |
| Crossover Modes | Passive / Bi-amp |
| Crossover Frequency | 1.1 kHz |
| Maximum SPL (1m) | 127 dB continuous / 133 dB peak |
| Sensitivity | 98 dB SPL |
| LF Driver | 1 x JBL 2265H 15 in woofer, 8 Ohms |
| HF Driver | 1 x JBL 2453H-SL compression driver, neodymium magnet |
| Nominal Impedance | 8 ohms |
