Item # VPVT-4PB

VANDAL PROOF INTERCOM STATION WITH COMPRESSION DRIVER & 25V TRANSFORMER

  • MAP: $268.99 / EA
  • List Price: $331.99 / EA
  • Log in to see if custom discounts apply
    VPVT-4PB VANDAL PROOF INTERCOM STATION WITH COMPRESSION DRIVER & 25V TRANSFORMER
    Click image to enlarge
    VPVT-4PB VANDAL PROOF INTERCOM STATION WITH COMPRESSION DRIVER & 25V TRANSFORMER

    Item # VPVT-4PB

    VANDAL PROOF INTERCOM STATION WITH COMPRESSION DRIVER & 25V TRANSFORMER

    • UM: EA
    • Estimated Weight: 4.5
    • Brand: ATLAS IED

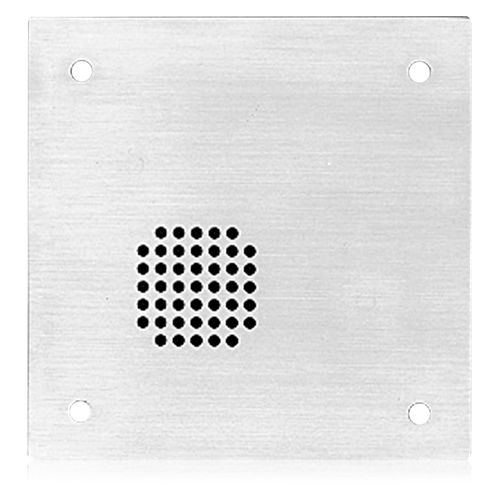

    VPVT-4PB Series vandal proof speaker station withstand damage caused from abuse, moisture, corrosion, dust, vibration and temperature extremes from 150° to -30°F. Station is available in 15 watt model with 12-gauge stainless steel plate mounted to the high efficiency VT Series compression driver. Patented 8ohm driver with water-sealed die cast zinc housing and exponential sound projector is recognized for dependable performance and high intelligibility voice and signal transmission. Driver functions as a speaker and a microphone for hands-free remote station communication with a centrally located master control.  Station assemblies install with tamperproof, button-head breakaway screws to a recess mounting enclosure (order separately). VPVT-PB is 7 1/4"SQ (184mm) and mount to enclosure Model VP-77 size.

    5 1/2"W x 6 1/4"H x 3 1/2"D (159 x 140 x 90mm). The enclosure is 16-gauge CRS with a rust preventive coating. VPB-1A is a vandal resistant push switch intercom accessory mounted to a single gang size.

    12-gauge stainless steel plate.  Vandal proof hardware installs using a 6–32 holt-head driver bit for a standard 1/4" nut driver.

    Features:

    • Damage Resistant Intercom and Paging Loudspeaker for Indoor or Outdoor Installation
    • Damage Resistant Intercom and Paging Loudspeakers for Indoor or Outdoor Installation Provide Protected High Intelligibility Communication
    • Operational Flexibility of Stations Equipped With Vandal Proof Call/Signal Origination Switch or Optional Stand Alone Push switch Accessory
    • Proven Performance Reliability of the Patented VT Series Environment Resistant Compression Driver
    • Provides Protected High Intelligibility Communication
    Frequency Response 400Hz - 4kHz
    Sensitivity 102dBA
    Power Taps 15, 8, 4, & 2
    Dispersion > 190° (- 6dB pt., 1 and 2 kHz octave bands)
    Transformer 25V
    Height 7 1/4" (18.42 cm)
    Shipping Weight 4.50 lbs (2.04 kgs)
    Warranty Period 60 months from date of purchase

    Documents
