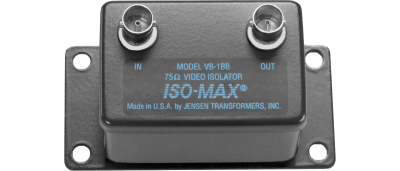

Description: Designed for use with standard RG59 type coaxial cable, the VB-1BB combines true 75 ? BNC connectors with a custom wound transformer to minimize reflection. The unique design delivers an exceptionally linear bandwidth from 10 Hz to 10 MHz with virtually zero insertion loss. Plug and play easy to use, the VB-1BB features a flanged, electrically isolated housing that is easily mounted on standard 19” rack rails or inside a NEMA enclosure. One simply connects the passive device in series and problems such as ground loops are eliminated, reducing noise by as much as 120 dB.

Features:

·        Eliminates hum bars caused by ground loops

·        Exceptional performance, will not deteriorate picture quality

·        Very high ground isolation: 120 dB CMMR typ at 60 Hz

·        Precise impedance matching ensures minimal reflection
