Item # UHT70C-U51-8
8" LOUDSPEAKER FOR FIRE PROTECTIVE SIGNALING WITH 70.7V-5W TRANSFORMER AND U51-8 BAFFLE
Item # UHT70C-U51-8
8" LOUDSPEAKER FOR FIRE PROTECTIVE SIGNALING WITH 70.7V-5W TRANSFORMER AND U51-8 BAFFLE
- UM: EA
- Estimated Weight: 28.0
- Brand: ATLAS IED

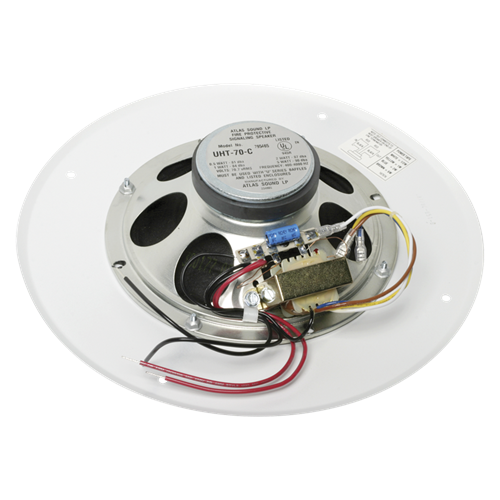

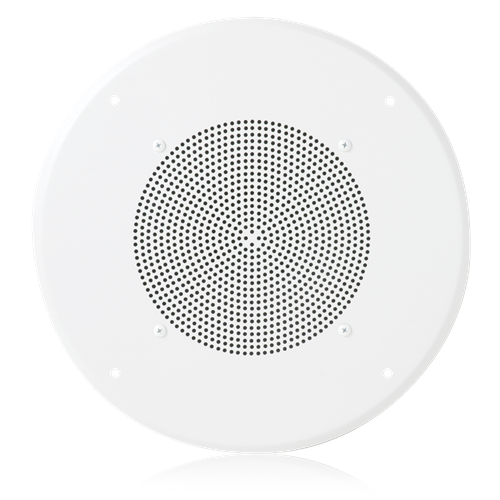

AtlasIED''s UHT70C-U51-8 are 8" diameter single voice coil speakers equipped with dual (whizzer) cone and 10 oz. ceramic magnet to deliver extended frequency response with high intelligibility and minimal distortion. Cost-effective units are complete with fire-retardant moisture-proof cones, factory-mounted 70.7V transformer, 6" color-coded leads, DC blocking capacitor and a 51-8 baffle.To comply with UL requirements, speaker packages must be used with UL-approved enclosures
Features:
- Attractive Ceiling-Loudspeaker/Baffle Assemblies Provide Unobtrusive Appearance of Life Safety and Emergency Signaling Loudspeakers
- Listed Under UL Standard 1480 (Speakers for Fire-Protective Signaling Systems)
- Selection of Baffle Styles and Multi-Tapped Transformers Meet a Variety of Aesthetic and Application Requirements
- Selection of UL Approved, Companion Enclosures is Offered
- UL Listed, Fire-Retardant and Moisture-Proof Cone Loudspeakers Reproduce Emergency Alarm and Voice Instructions with Superior Intelligibility and Extended Frequency Response
| Frequency Response | 85Hz - 8kHz |
|---|---|
| Sensitivity | 97dB Peak, 94dB Avg. |
| Power Taps | .5, 1, 2, & 5 Watts |
| Power Rating | 10 Watts |
| Diameter | 8" (20.32 cm) |
| Depth | 2 7/8" (7.3025 cm) |
| Shipping Weight | 4.67 lbs (2.12 kgs) |
| Safety Listed | 1480 |
| Warranty Period | 60 months from date of purchase |
