4 X 4 IMPEDANCE DIVIDER/COMBINER
Item # TSD-ZDC
4 X 4 IMPEDANCE DIVIDER/COMBINER
- UM: EA
- Estimated Weight: 19.6
- Brand: ATLAS IED

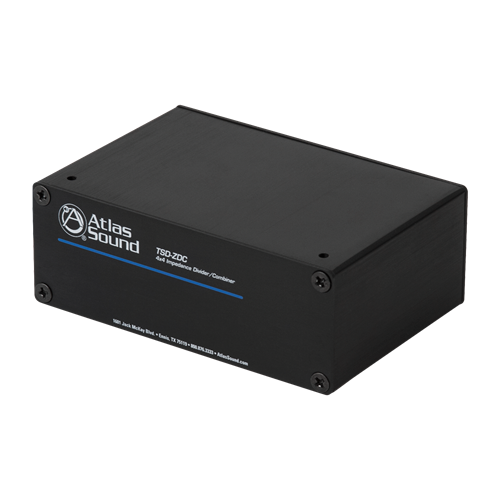

The TSD-ZDC is a universal impedance divider/combiner for passively summing or splitting of mic or line level signals. Features include four unbalanced 10K and four balanced 150O inputs/outputs that may be passively split or combined in any arrangement. Typical applications include passive summation of multiple 150O mics or stereo 10OK sources and passive splitting of 150O or 10KO input sources to multiple outputs.

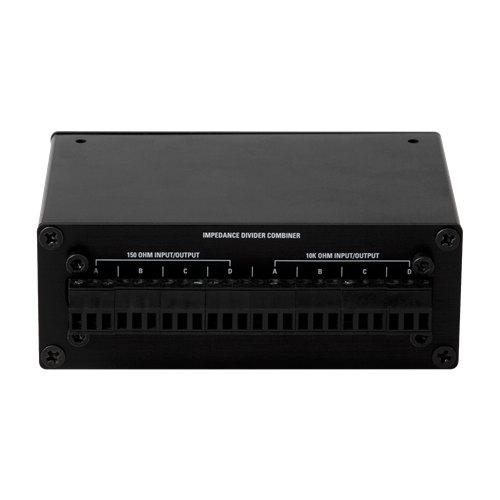

To ease contractor use and installation the TSD-ZDC includes individual ground connectors for each input/output. The unit''s compact footprint allows for easy standalone mounting or an optional rack mount adapter may be used to facilitate up to (4) TSD devices.
Features:
- Four (4) 150O Stereo Input/Outputs
- Four (4) 10K Stereo Input/Outputs
- Split or Combine Any Signal
- RF Filtering on All Inputs
- Individual Input Grounds
- Removable I/O Connectors
- No External Power Required
| 150O Network Inputs/Outputs | 4, Passive Balanced Networks, Any Channel Can Be Input or Output |
|---|---|
| Frequency Response | 20Hz - 20kHz |
| Height | 1.5" (3.81 cm) |
| Width | 4" (10.16 cm) |
| Depth | 2.5" (6.35 cm) |
| Weight | 6oz., .165kg |
| Warranty Period | 36 months from date of purchase |
