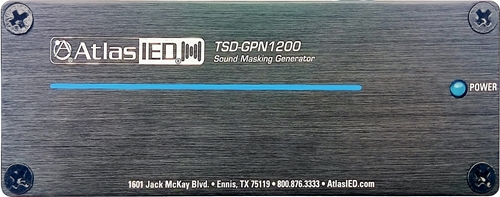

The Atlas Sound TSD-GPN1200 generation 2 sound masking generator is perfectly suited for basic sound masking systems. Its DSP noise topology design eliminates repeating cycles commonly found in other manufacturers’ low-cost digital designs.

The TSD-GPN1200 provides pink noise as a source and incorporates a variable balanced output to match the input requirements of AtlasIED amplifiers. Additionally, it features a variable hi-cut filter with an operating range between 2 kHz and 16 kHz at a slope of 6 dB per octave, supporting equalization requirements for most basic sound masking systems. The TSD-GPN1200 also includes a remote level control designed to be used with the optional AtlasIED Masking attenuator, the ATMASKSC which offers precise adjustments in 1dB increments.

The TSD- GPN1200 is highly efficient and meets Energy Star standards as one 24V DC power supply can power multiple Atlas Time Saving Devices (available separately).

Unit requires Power Supply that is sold separately for proper function, multiple TSDs can be powered with one power supply based on current requirements. This unit has a power requirement of 250mA so any of the available TDS power supplies can be used with the unit. For multiple TSD applications use the TSD Power Calculator to determine the proper power supply needed.

Features:

• Gen 2 Sound Masking Noise Generator Topology
• Balanced Line Output
• Adjustable Level and Hi-Cut Filter
• Pink Noise Source
• Stand Alone or Rack Mountable (Optional)
• Remote Level Control in 1 dB Steps
• Meets Energy Star Standards
• Compact Chassis Design
• Non Fluxuation Output Design
• Power Supply Sold Separately
