Item # TSD-DAC2I
2 CHANNEL BALANCED LINE INPUT ANALOG PRE-AMP TO DANTE INTERFACE (CONVERTS ANALOG AUDIO TO DANTE)
Item # TSD-DAC2I
2 CHANNEL BALANCED LINE INPUT ANALOG PRE-AMP TO DANTE INTERFACE (CONVERTS ANALOG AUDIO TO DANTE)
- Estimated Weight: 1.0
- Brand: ATLAS IED

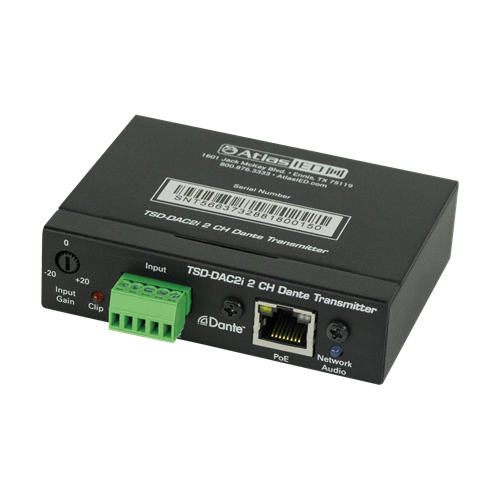

The AtlasIED TSD-DAC2i is a PoE 2-channel analog pre-amplifier that converts analog audio signals into Dante digital audio. The TSD-DAC2i can be used for any Analog to Dante digital audio end point but is ideally suited to be used with the AtlasIED WTSD wall mixer series. Once converted into Dante digital audio, the audio can be transmitted over IP networks and routed in the Dante Controller software. The TSD-DAC2i Dante transmitter I/O module features two analog balanced line inputs with a variable gain to operate from line to mic level. An Input Clip indicator illuminates when clipping signals are present. There are indicators for Power and Network connection. The TSD-DAC2i requires no external power supply, it is powered via a network PoE port or a PoE cable power injector.
Features:
- Dante digital audio platform
- 2 CH Balanced Analog Line Input
- Wide range gain adjust -20dB to +20dB
- AUX, Line & Mic Levels
- Input Clip Indicator
- PoE Powered

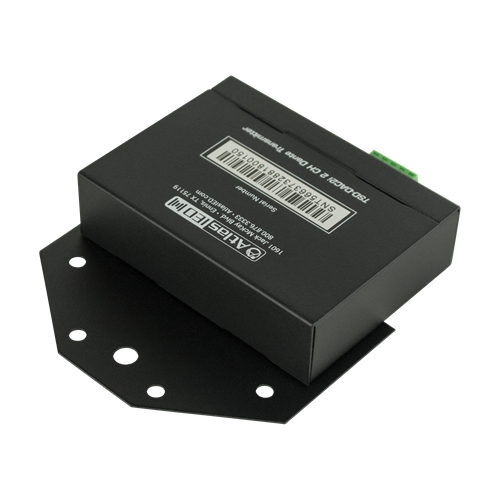

- Mounting Plate
- Incorporates with WTSD Wall Mixers
| Network Interface | Single RJ-45 |
|---|---|
| Input impedance | 15kΩ (Analog) |
| Frequency Response | 20Hz - 20kHz (+/- 2dB) |
| THD | .06% @ 1kHz |
| Signal to Noise Ratio | 95dB @ 1kHz (A Weighted) |
| Dynamic Range | 100dB (-60dBFS A Weighted) |
| Power Source | PoE (52V 36mA) |
| Power Consumption | 1.9W |
| Height | 1" (25mm) |
| Width | 3.6" (93mm) |
| Depth | 3.17" (81mm) |
| Weight | .44 lbs (0.20kg) |
| Shipping Weight | .7 lbs (0.32kg) |
| Warranty Period | 36 months from date of purchase |
