TH212-I | 2 X 12" LONG EXCURSION TAPPED HORN SUBWOOFER PASSIVE INSTALL VERSION / BLACK
Item # TH212-I
2 X 12" LONG EXCURSION TAPPED HORN SUBWOOFER PASSIVE INSTALL VERSION / BLACK
Click image to enlarge

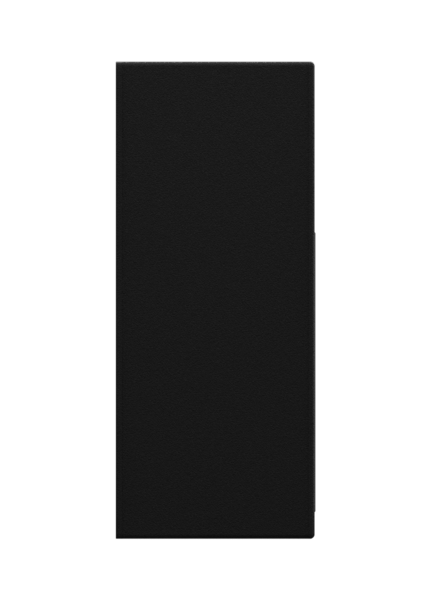

The TH212-I is a compact loudspeaker enclosure designed to deliver high acoustic output from a lightweight structure. It features an interchangeable port and grill system that allows selection between two acoustical output configurations.
The enclosure provides a side exit port optimized for vertical orientation and an end exit port designed to minimize frontal area, suitable for applications with limited stage height.
| Operating Frequency Range | 38 Hz – 200 Hz ± 3 dB |
|---|---|
| Continuous Output | 133 dB SPL |
| Peak Output | 139 dB SPL |
| Sensitivity | 104 dB SPL (2.83 V at 1 m, half space) |
| Driver Complement | two 12" long excursion woofers |
| Rated Impedance | 4 Ohms |
| Power Rating | 1,400 W continuous |
