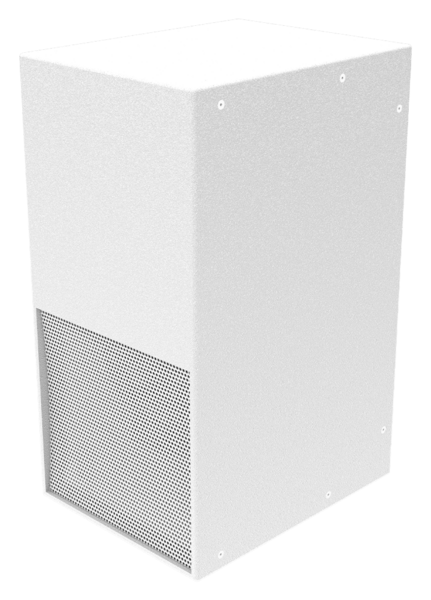

TH118XL-I-W | 18" LONG EXCURSION TAPPED HORN SUBWOOFER, PASSIVE INSTALL VERSION, WHITE
Item # TH118XL-I-W
18" LONG EXCURSION TAPPED HORN SUBWOOFER, PASSIVE INSTALL VERSION, WHITE
Click image to enlarge
The TH118XL-I-W subwoofer features a tapped horn design that doubles the output efficiency of its driver element, enhancing low-frequency power output. This design supports high power handling and enables the unit to deliver volume comparable to two standard 2×18-inch front-loaded cabinets, while requiring fewer amplifiers.
The cabinet includes interlocking skids on its top and bottom surfaces, allowing secure stacking with additional TH118XL or SH96/96HO units.
| Operating Frequency Range | 35 Hz – 150 Hz |
|---|---|
| Continuous Output | 134 dB SPL |
| Peak Output | 140 dB SPL |
| Sensitivity | 105 dB SPL (2.83 V, 1 m, half space) |
| Driver Complement | 1 x 18" long excursion woofer |
| Rated Impedance | 4 Ohms |
| Power Rating | 1700 W continuous |
Downloads
×
