Item # TFD72WC
8" LOUDSPEAKER PACKAGE WITH 25V/70.7V-4W TRANSFORMER AND T62-8 BAFFLE
Click image to enlarge
Item # TFD72WC
8" LOUDSPEAKER PACKAGE WITH 25V/70.7V-4W TRANSFORMER AND T62-8 BAFFLE
- UM: EA
- Estimated Weight: 24.0
- Brand: ATLAS IED

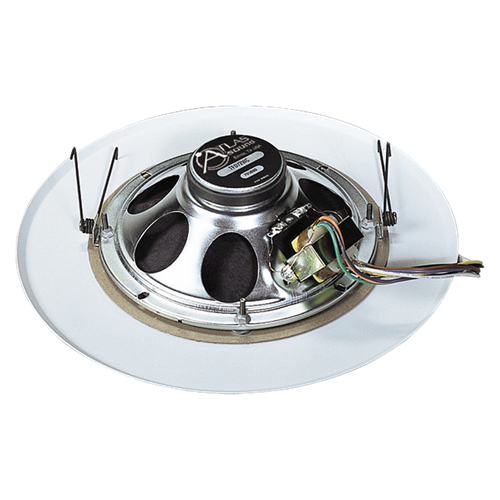

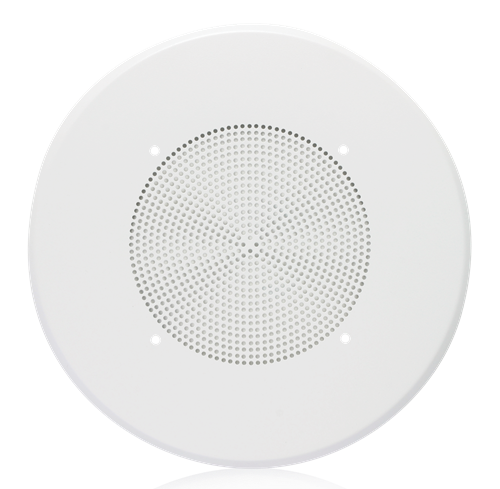

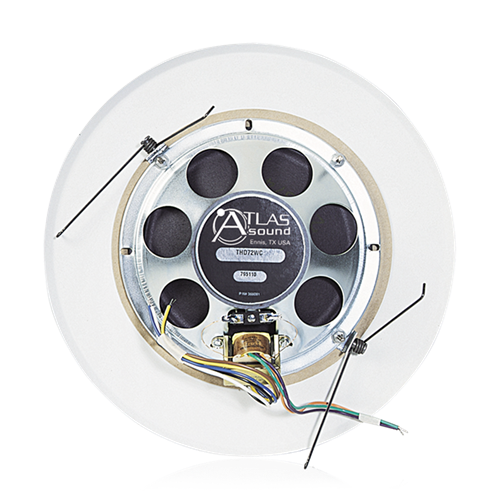

The TFD72WC is a cost-effective 8" dual-cone speaker assembly which delivers wide frequency response for general purpose voice and music reproduction. Unit is shipped complete with torsion mount baffle and 25/70.7-volt transformer factory wired to reduce field installation time and expense. The TFD72WC will accept optional protective enclosures and mounting accessories to meet installation and code requirements.
Features:
- Attractive White Finish
- Easy to Order Speaker/Transformer/Torsion Grill Assembly
- Suited for Any Commercial Paging or BGM Application
| Frequency Response | 100Hz - 10kHz |
|---|---|
| Sensitivity | 96dB Peak, 93dB Average |
| Power Taps | .25, .5, 1, 2, & 4 Watts |
| Speaker Type | Treated Paper |
| Dispersion | 105° |
| Depth | 2 5/8" (6.6675 cm) |
| Diameter | 8" (20.32 cm) |
| Shipping Weight | 4.00 lbs (1.81 kgs) |
| Warranty Period | 60 months from date of purchase |
