Item # T625ACW

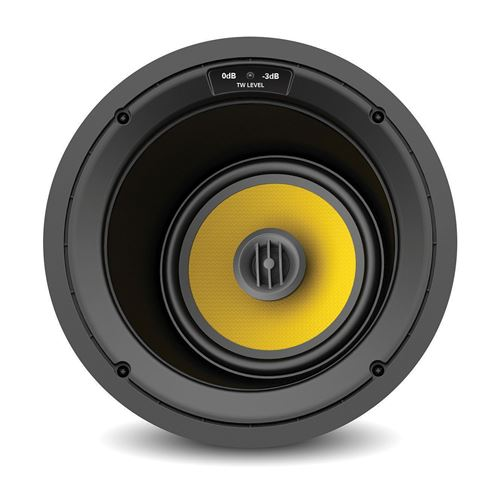

6.5" ANGLED 100-WATT, 6OHM IN-WALL/IN-CEILING LOUDSPEAKER WITH MAGNETIC GRILLE
Item # T625ACW
6.5" ANGLED 100-WATT, 6OHM IN-WALL/IN-CEILING LOUDSPEAKER WITH MAGNETIC GRILLE
- UM: EA
- Brand: ATLAS IED
Beyond Home Theaters
High Power and Unmatched Frequency Response
Custom Look
Paintable Magnetic Grilles Minimize Visibility
Audiophile Components
Kevlar Woofers and Teteron Tweeters Deliver True Sonic Clarity
Bring Your Home Alive
MTX THUNDER Series speakers are an easy way to bring your home theater to live. Designed to handle 100-watts RMS power, the T625ACW can be used as front stage, center stage, or rear stage in any home theater application. Their versatility enables them to be used however they best fit your system. Including 2nd order crossovers and front mounted tweeter adjustement, the T625ACW delivers sonic accuracy at the high, middle, and low ends of the sound spectrum.
Home Theater Cinematic Experience
The THUNDER Series takes home theater to the next level. Coupled with a surround sound receiver and an MTX TSW subwoofer, the T625ACW will allow you to hear music and movies like you never have before.
T625CW Key Features
Kevlar Woofer Delivers Accurate Low Frequencies
Teteron Tweeter Produces Clear High Frequencies While Minimizing Resonance
Pivoting Tweeter Allows for Proper Sound Imaging
15 Degree Angled Design
12dB/octave Highpass and 6dB/octave Lowpass Crossover
Mylar Highpass Capacitors
High Temperature Woofer and Tweeter Voice Coil Wire
Compression Style Input Terminal Accepts Up to 8-AWG Speaker Wire
Front Mounted Tweeter Level Control

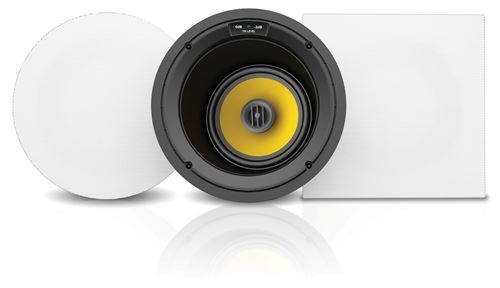

Round and Square Paintable Magnetic Grilles Included
Sold as Single Unit
Features:
- Kevlar Woofer Delivers Exceptional Mid and Low Frequency Output
- Teteron Tweeter Reproduces Accurate High Frequencies
- 15 Degree Angled Design Allows for Perfect Delivery from High Ceiling or Wall Placement
- Pivoting Tweeter Allows for Proper Sound Imaging
- 12dB/octave Highpass and 6dB/octave Lowpass Crossover
- Mylar Highpass Capacitors
- High Temperature Woofer and Tweeter Voice Coil Wire
- Compression Style Input Terminal Accepts
- Up to 8-AWG Speaker Wire
- Front Mounted Tweeter Level Control
- Round and Square Paintable Magnetic Grilles
- Sold as Single Unit
| Woofer | Single 6.5" Kevlar |
|---|---|
| Tweeter | Pivoting 25mm Teteron |
| Impedance | 6Ω |
| Frequency Response | 35Hz - 30kHz |
| Crossover Frequency | 4kHz (12dB/Oct) |
| Sensitivity | 88dB |
| Mounting Depth | 3-7/16" |
| Cut Out Size | 7-7/8" |
