Item # T30

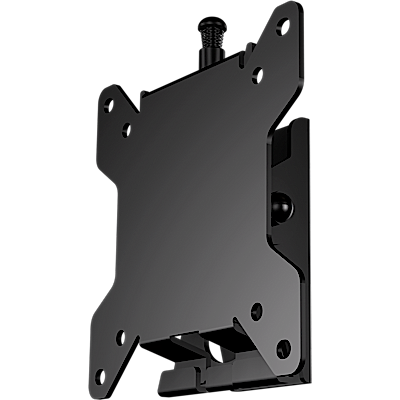

TILTING MOUNT FOR 10IN TO 30IN FLAT PANEL SCREENS
Click image to enlarge
Item # T30
TILTING MOUNT FOR 10IN TO 30IN FLAT PANEL SCREENS
- UM: EA
- Estimated Weight: 1.1
- Brand: CRIMSON
Flat panel tilt wall mount with smooth adjustments of 15° forward and 15° back for a variety of viewing angles. Makes a secure installation quick and easy, simply hang the screen and turn the pre-assembled securing screw to lock in place. Holds screen close to wall for a clean look.
Features:
- VESA compatible 75x75mm, 100x100mm
- Low-profile, holds screen close to wall for a clean look
- Pre-tensioned tilt mechanism for smooth adjustment
- Pre-assembled securing screw makes installation fast and easy
| TV size range | 10" – 30" |
|---|---|
| Weight capacity | 40lb (18kg) |
| Max mounting pattern | 100x100mm |
| VESA mounting patterns | 75x75mm, 100x100mm |
| Depth from wall | 1.5" (38.1mm) |
| Tilt | +15°/-15° |
| Mounting surface | wood stud, concrete, cinder block or metal stud (accessory required HT2) |
| Stud spacing | single stud |
| Construction | high-grade cold rolled steel |
| Product finish | scratch resistant epoxy powder coat |
| Product weight | 0.9lb (0.4kg) |
| Package specifications | 6"x5.8"x2" |
| Color | black |
| Warranty | 10-years |
