Item # T18
HIGH-QUALITY TRANSFORMER 60W (70.7V)
Click image to enlarge
Item # T18
HIGH-QUALITY TRANSFORMER 60W (70.7V)
- UM: EA
- Estimated Weight: 2.0
- Brand: ATLAS IED

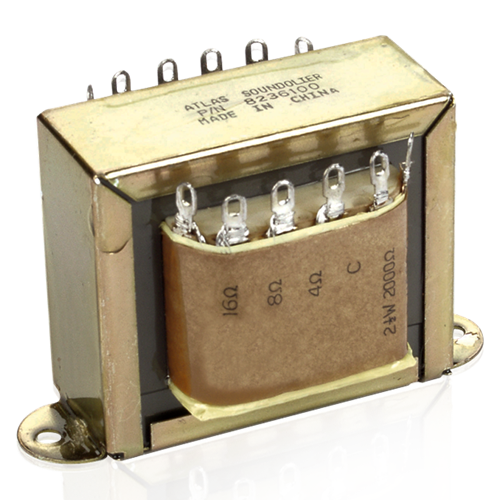

AtlasIED ModelT-18 is a line matching U-frame, varnish-impregnated transformer. High efficiency unit reduces line loss when long transmission cables interconnect amplifier and speakers and when two or more speakers are connected to a common amplifier source. Unit features element-resistant components and clearly identified terminals for solder connection.
Features:
- 2.5, 5, 10, 20, 40 and 60 Watt Taps, 4,8 and 16 Ohm Secondary
- 60 Watt 70.7V Line Transformer
- High Power Rating is Perfect for Use with Compression Driver Horns in High Noise Environments
| Frequency Response | 60Hz - 20kHz |
|---|---|
| Height | 2 1/4" (5.7 cm) |
| Width | 2 11/16" (6.8 cm) |
| Depth | 1" (2.5 cm) |
| Shipping Weight | 1.50 lbs (0.68 kgs) |
| Warranty Period | 60 months from date of purchase |
